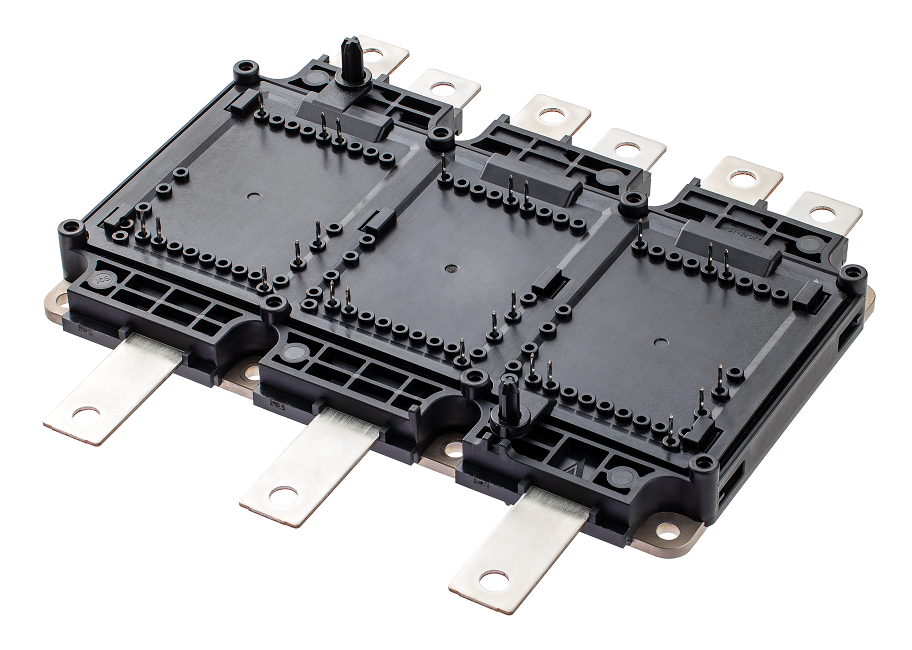

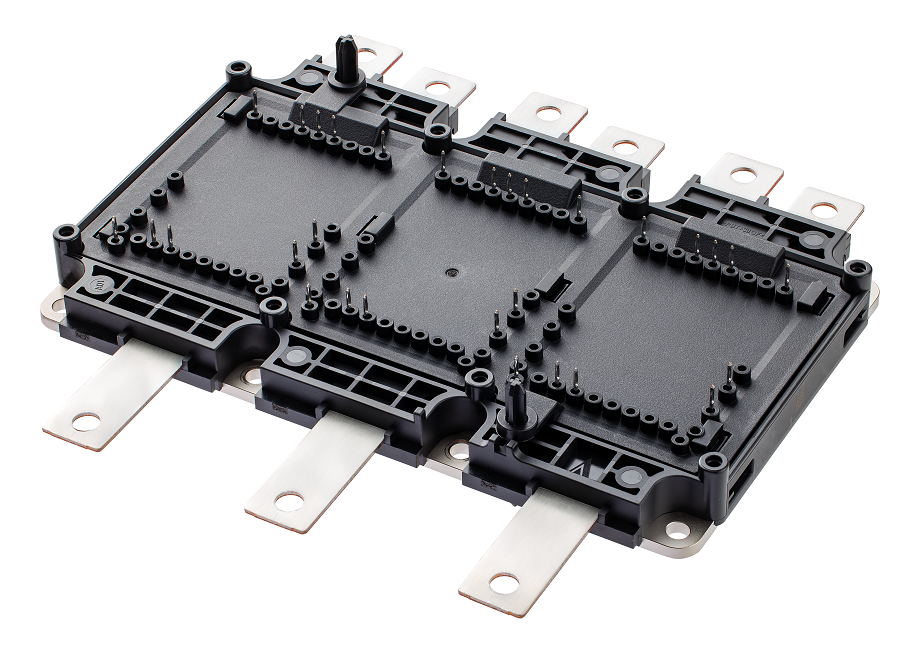

Si IGBT 750V/820A Drive Power Module
Beschreibung
- 6 in 1 Integrated design for 3 phase motors
- Fully tested based on AQG324 & PPAP available
- Voltage: 750V, Current: 820A
- Output: 100~150KW
- Built in NTC Temperature sensor
- PressFit connection design
- RoHS Qualified
- Long tab with hole
Product info
Drive AEP820B08TFLT power module has a 6 in 1 topology design integrated with IGBT power semiconductors, applicable for xEV/e-mobility traction motor inverters operating with 400V battery systems. With a maximum current output at 820A and drives the motor to deliver output at 150kW. Equipped with built-in high efficiency pin fin heat spreader to offer high reliability and power density. Drive module is the optimal solution for electrified vehicles.
