The new Arianna family of street lighting luminaires.
Phileo Pro is a LED street lighting luminaire with an innovative design, continuing the Phileo tradition.

Ideal for both new roads and the replacement of existing systems, Phileo Pro combines low costs, high-quality materials and energy savings, all in compliance with current regulations.It has been designed to ensure market competitiveness while maintaining the high performance of the Phileo family.
The Phileo Pro optical system confirms the success of Arianna’s reflective optics. The anodised aluminium reflectors coated with a layer of pure silver guarantee 98% reflectivity, maximising the performance of the LEDs and visual comfort, ensured by the total reflection system.
All models have enhanced IK09 impact resistance, thanks to the extra-clear 5 mm tempered glass, guaranteeing an extremely robust and safe fixture.

The new luminaire is suitable for all existing remote controls as well as future innovations, with the common goal of creating connected, smart cities.

With Phileo PRO, virtual midnight can now be remote-controlled. . The luminous flux of all the luminaires in this line can be adjusted from the electrical panel without wiring or fitting other devices on the luminaire, using a configurable remote control unit.
This innovative feature ensures an extremely flexible luminaire with the highest efficiency.
The total reflection optical system, which maximises the efficacy of the luminous flux and minimises waste outside the roadway, combined with the luminaire's very high luminaire efficiency l/w, makes possible to guarantee a high energy performance index (IPEI) in all urban contexts.

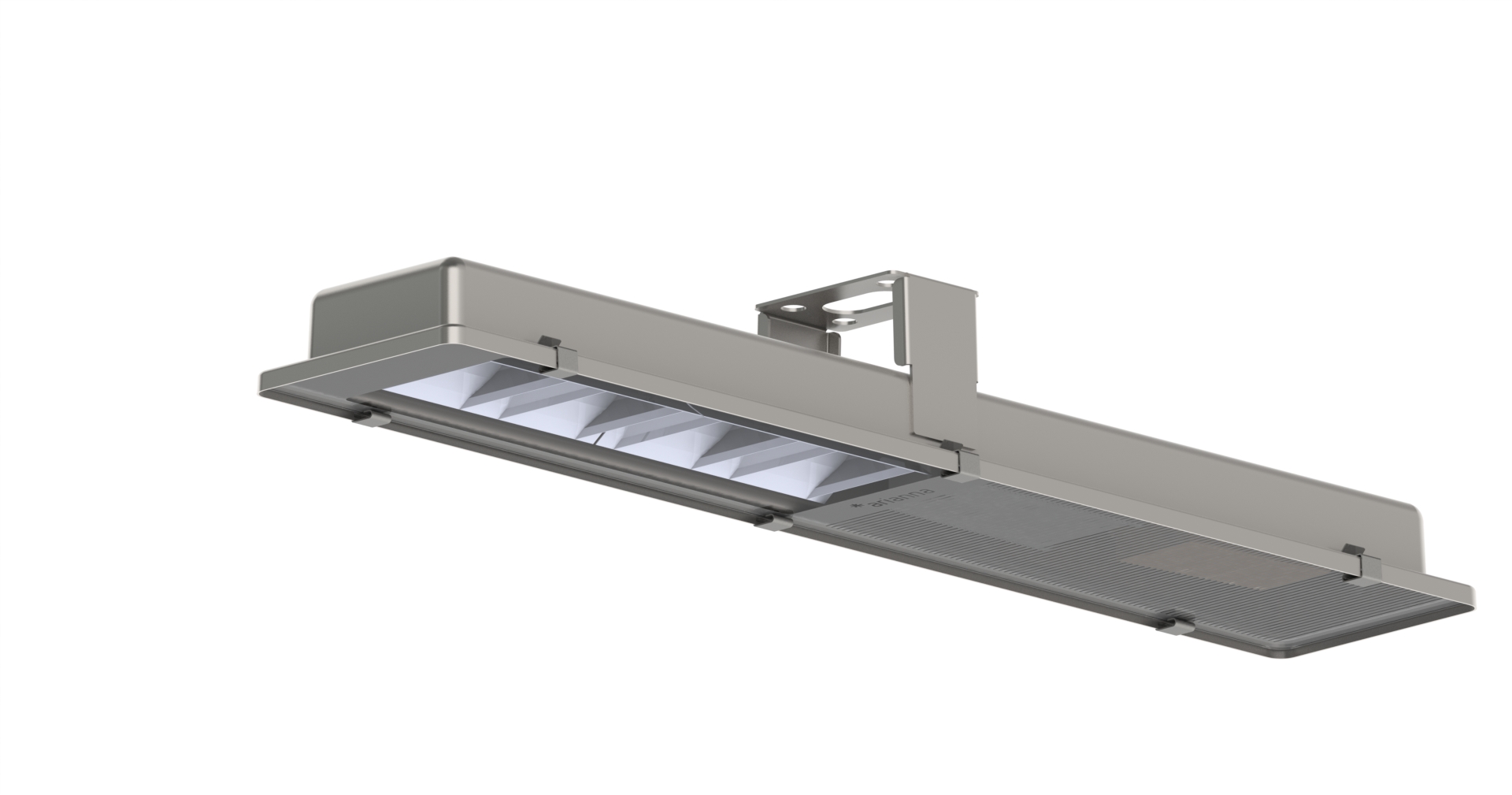

Minox is the family of stainless steel floodlights with LED technology for harsh and corrosive environments. A single technological solution to illuminate all areas of the tunnel, from the first to the last meter.

The hyper modular stainless steel floodlight. There is often dust, fumes, humidity, drips and, of course, exhaust fume pollution in a tunnel. So, the electrical appliances will need to withstand an extremely corrosive environment.
To make the new AISI316L stainless steel tunnel floodlight unique, the R&D department have come up with an entirely solder-free light that maximises the resistance to aggressive environment because it does not use other materials on the outer structure.
The choice of components and raw materials used in Arianna is followed very carefully with a view to ensuring long product life. The maintenance or replacement of lighting fixtures involves high management costs and unnecessary CO2 emissions.
Minox is designed to make installation easy and replace existing methods thanks to its limited weight and universal bracket.

With Arianna, efficiency is not limited to the light source alone, but rather is amplified by series of technological details that increase energy savings: 98% reflective optics, extra transparent glass to maximize light transmittance and corrosion resistant high power LEDs.

For Arianna, sustainability takes concrete form in the creation of quality products that respect the resources of the environment and the future of people. A principle that has always inspired the design of all products.

Arianna guarantees maximum quality and efficiency tested to optimise the energy saving and durability of the products. AISI 316L full stainless steel body, providing maximum protection from weathering, certified and validated power supplies, reflector material internally tested for corrosion resistance.

The Minox tunnel floodlight is supplied with Arianna’s patented universal bracket, a solution that solves the static shape of the brackets currently available on the market. It is a bracket for universal cable trays with variable geometry, consisting of three moving parts: two sliding side plates that give lateral stability and a central plate with variable height that is able to manage different heights of cable tray.

Minox Mini
Minox Mini is suitable, specifically but not exclusively, for the permanent line and is available in three wattage sizes. For the permanent lighting of tunnels, the patented symmetrical total reflection optic is able to guarantee the right light beam in terms of uniformity, glare control and energy efficiency. Minox Mini guarantees fluxes starting from 3600 lumens and in its most powerful version it is able to reach 6600 lumens.

Minox Maxi
Modular, but designed to be suitable mainly for reinforcement, Minox Maxi is presented with configurations of up to 4 modules. For the application as reinforcement lighting, Arianna has prepared a counter-flow optic which, eliminating the vertical and symmetrical components of the photometry, generates a light beam capable of obtaining significant luminance levels, reaching the lighting specifications of the project with consumption considerably lower. Minox Maxi adapts to any type of tunnel thanks to the availability of fluxes from 10,000 lumens in the basic configuration, up to 52,000 lumens in the Minox Maxi 4-module configuration.

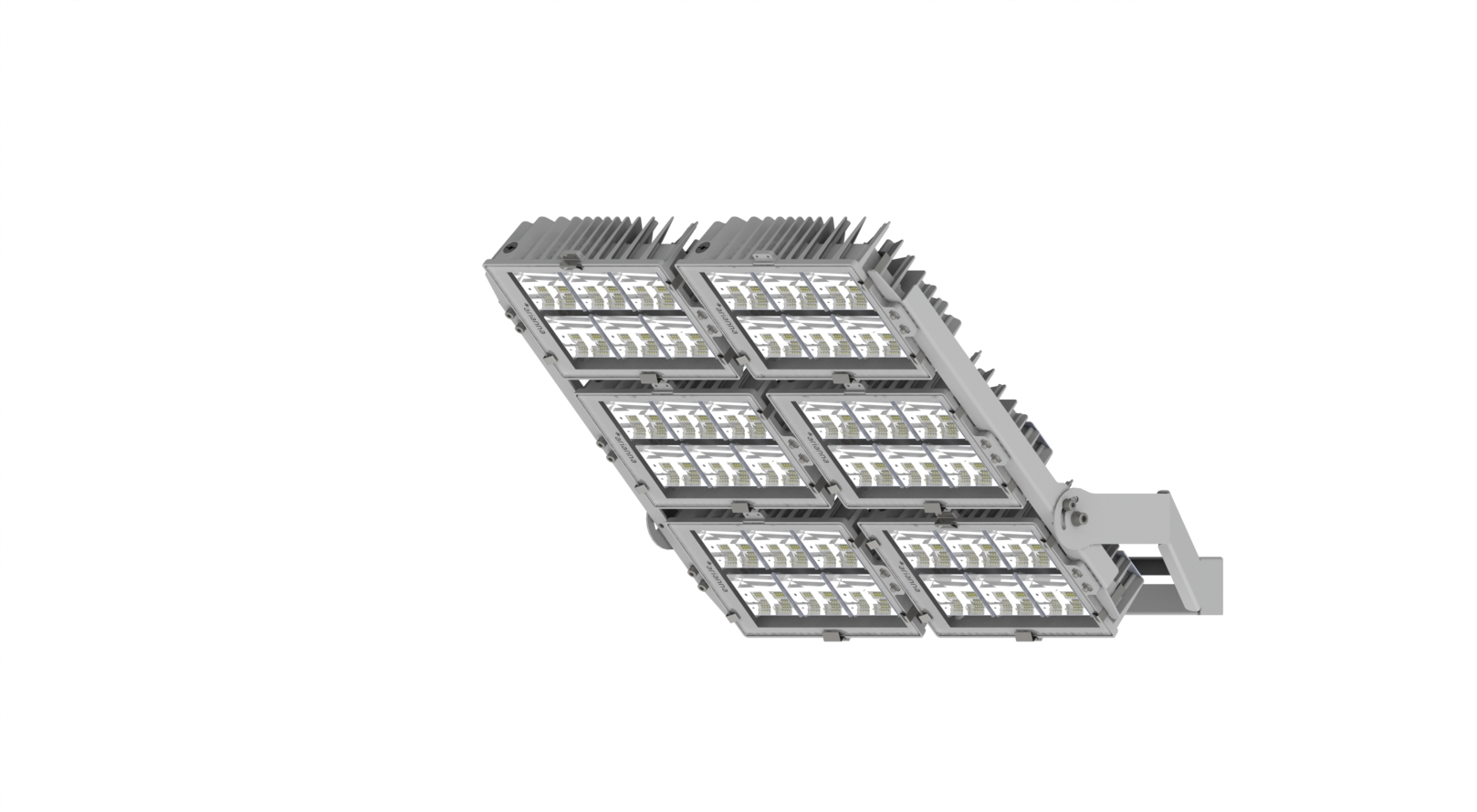

Petrarca is the highly efficient and effective modular floodlight for industries, sports, tunnels and large areas.

Thanks to the dynamism and flexibility of the internal research and development department, Arianna has studied a system capable of adapting to the different lighting needs and lighting engineering requests.Petrarca was born from the strong need to find a modular product capable of illuminating with fluxes from 2,000 to 200,000 lm for any type of installation in large areas, sports, industries and galleries.A product that encompasses Arianna's technological developments to offer the right light configured for each lighting project.

Petrarca's optics are designed to guarantee maximum performance and reliability thanks to the silver-coated aluminum reflectors that reach a reflectivity of 97%. By applying the Total Reflection patent to the reflectors, the projector is able to ensure very high efficiency (module efficiency up to 200 lm/w) without dazzling.

The compact and modular shape facilitates installation, while the use of high-quality materials means maintenance is reduced to a minimum, ensuring long life for the entire system.
In sports facilities, total reflection, applied to Petrarca's optics, ensures a game with zero glare and high visual comfort. The lighting system uses exactly the light needed for each phase of the game, be it a training session, a match or partial use of the field, without dispersion with the aim of optimizing energy savings.

Many people spend most of their time in the workplace making safety and well-being essential elements. The choice of the right light therefore plays a fundamental role.

In Arianna's Tunnel light project, Petrarca has a design studied to optimize heat dispersion but above all it’s small and competitively priced. The total reflection symmetrical optics ensure, in the permanent section, visual comfort along the entire length of the tunnel; in the entrance section, the counterflow optic, with total reflection, guarantees glare control and avoids light dispersion.

Petrarca Sport
In sport facilities the total reflection applied to the optics of Petrarca ensure zero glare on the game and high visual comfort.

Petrarca Tunnel
In tunnel lighting project Petrarca, low and competitive costs, it has a studied design in order to optimize heat transfer.

Petrarca Industrial
In industrial environments it’s the ideal product for installations higher than 6m and up to 30,000 lm thanks to the wide range of optics.

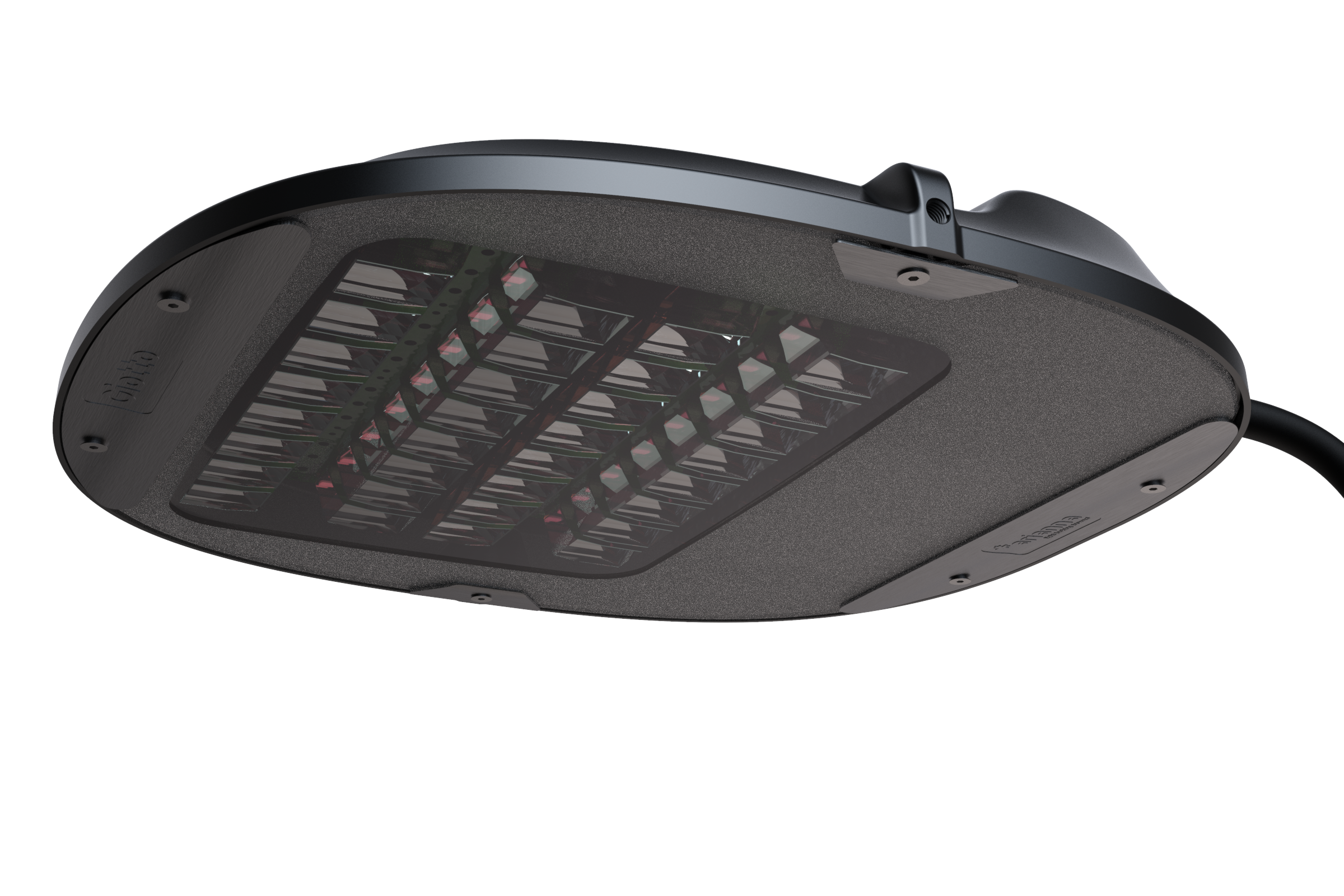

Giotto is a light engine around which an aesthetic and mechanics have been created that can be used in different application fields: sport, tunnel, street, industrial.
Giotto is the new Arianna's functional platformA new project that enriches the sports offering and introduces an Arianna product proposal for industrial lighting. The dynamic and flexible structure of the light fixture makes it suitable for all situations where low flows are required, but where the quality of light is essential for well-being, safety and comfort.

It combines style with functional requirements, in a versatile and contemporary product, in the name of innovation. The shape reflects the image that comes to mind when thinking of Giotto, it focuses on the idea of roundness. The volume is tapered towards the top to give an idea of compactness and create a nice play of reflections with the light.
From below, the whole is perceived as a rounded and thin body. Laterally, the threads for the C-bracket attachment come out recalling the cooling fins and characterizing the lines of the product. RAL 7016 is the color chosen for the standard range, with the intention of pursuing the renewal undertaken in Arianna products.

The new lighting fixture is suitable for all types of existing remote control and for future innovations, with the common goal of making the city connected and intelligent. An intelligent connected system is able to adjust the brightness of the device based on the visibility conditions to make the driving experience as comfortable as possible. The light is adjusted according to needs, optimizing consumption and avoiding unnecessary waste thanks to the dynamic adjustment of the luminous flux. The management of the lighting system is monitored remotely. Failures or efficiency losses are recognized to ensure immediate interventions and maximize safety.

The product is extremely compact: all the technology of Arianna’s optical engine, in a 3 kg housing. The dynamic design of the mechanical components makes the unit ideal for innumerable applications. The high quality of the components, “Made in Italy” manufacturing, and stringent product testing guarantee Arianna’s renowned product quality.

Giotto is a light engine around which we have created an aesthetic and a mechanics capable of being used in different application fields: sport, tunnel, street, industrial.

Giotto Sport
The perfect luminaire body to last over time with no drop in flow and no maintenance.

Giotto Street
A cost effective luminaire that is very small and compact, yet versatile for street and urban applications.

Giotto Industrial
A product with a versatile and contemporary style that manages to combine design and functionality in the name of innovation.

Giotto Tunnel
Ideal system for permanent tunnel sections where technology, quality and sustainability are fundamental.
