INSTALLATION SPEED - HIGHEST SAFETY - COMPLETE SOLUTION

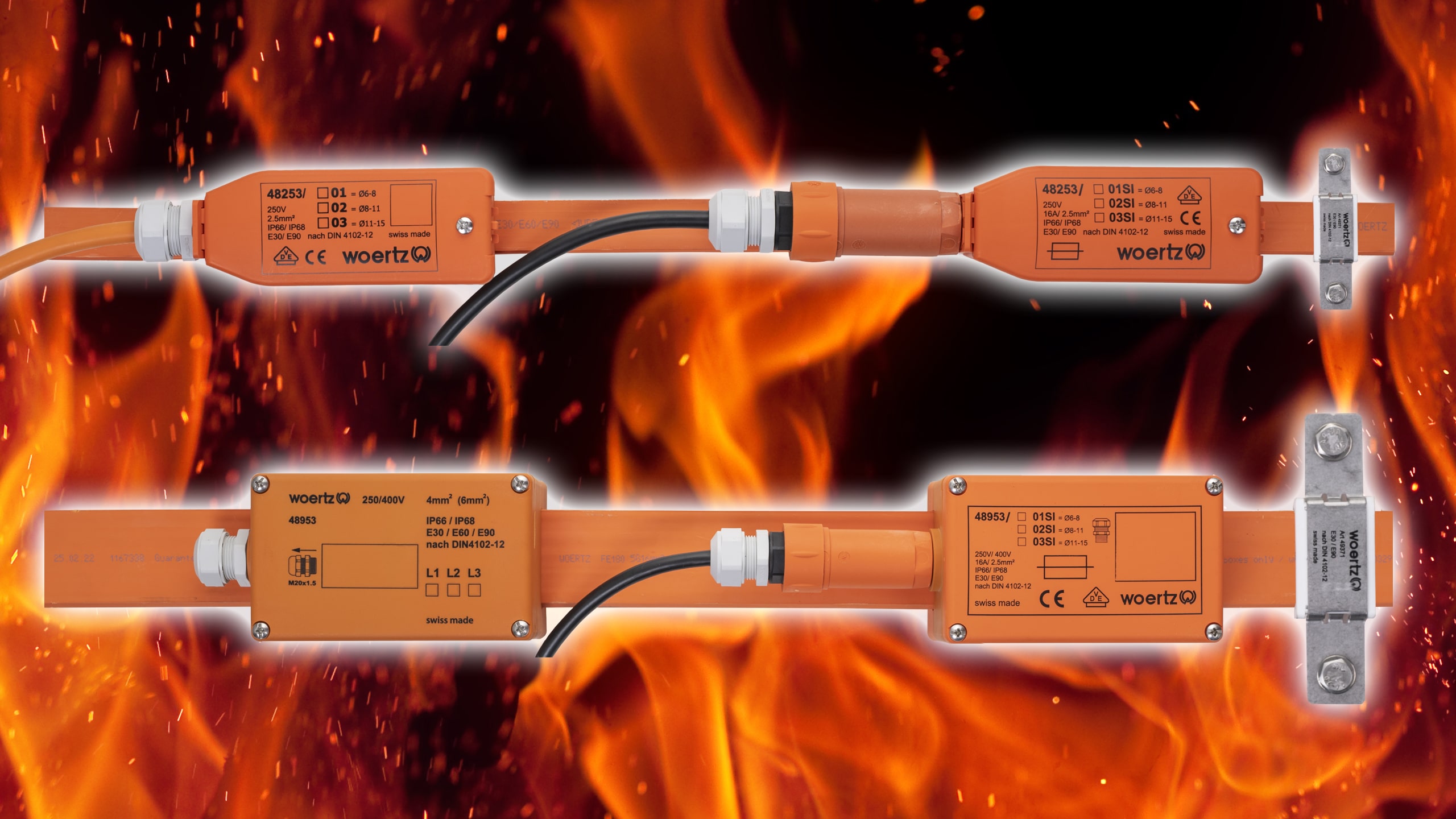

The Woertz fire safety system is a complete solution for the highest safety requirements, consisting of cable laying system, flat cable and junction boxes. It ensures that in the event of a fire, safety-relevant elements are reliably supplied with energy in order to guarantee air, light and signalling during an evacuation to protect life and limb.

Woertz offers a system-tested, E90 function-preserving complete solution from a single source. In addition, the FE180 flat cable fulfils the highest classification of the building product regulation B2ca s1 d0 a1 and therefore does not show any critical behaviour, i.e. no danger emanating from the cable, in the event of fire.

Thanks to design advantages and high-tech materials, the patented Woertz fire safety flat cable system is significantly safer than round cables and also offers outstanding advantages in terms of installation speed.

Woertz also offers specific standard concepts and safety concepts for optimal fire safety cabling with flat cable system in buildings.

The FE180 E90 flat cable system is used in demanding environments such as railway and road tunnels, power stations, industrial plants and escape routes to ensure emergency lighting. Such as the manual lighting at the Swiss Federal Railways SBB, the Metro Riad and Alptransit Gotthard.

All Woertz cables and boxes are manufactured entirely in Switzerland and are internationally certified. 100% Swiss Made. 100% Swiss Quality.

SUSTAINABLE - RELIABLE - EXPANDABLE

The Woertz E-Mobility installation with flat cable is the fastest and easiest way to implement a high-quality charging infrastructure in underground garages, parking garages and outdoor parking places. This is not only safe and reliable, but also efficient, profitable, easily expandable and compatible with charging stations from all manufacturers.

With the flat cable system, which was invented by Woertz as early as 1972, the junction boxes are mechanically contacted without confusion and without cable cutting on the flat cable in an insulation-piercing manner. This means that there are no serial contact points and no additional transition resistances in the current power flow. Time-consuming cable cutting is no longer necessary and a junction box can be installed within a few minutes.

With one heavy-duty flat cable in design up to 5x25mm² 50 intelligent charging stations can be fed.

The flat cable system meets the highest safety requirements B2ca s1 d0 a1 according to the building products regulation, protection class IP65 and is UV resistant. So with Woertz you are on the safe side in all respects!

All Woertz cables and boxes are entirely manufactured in Switzerland and internationally certified. 100% Swiss Made. 100% Swiss Quality.

FAST - FLEXIBLE - COST-EFFECTIVE - RESOURCE-SAVING

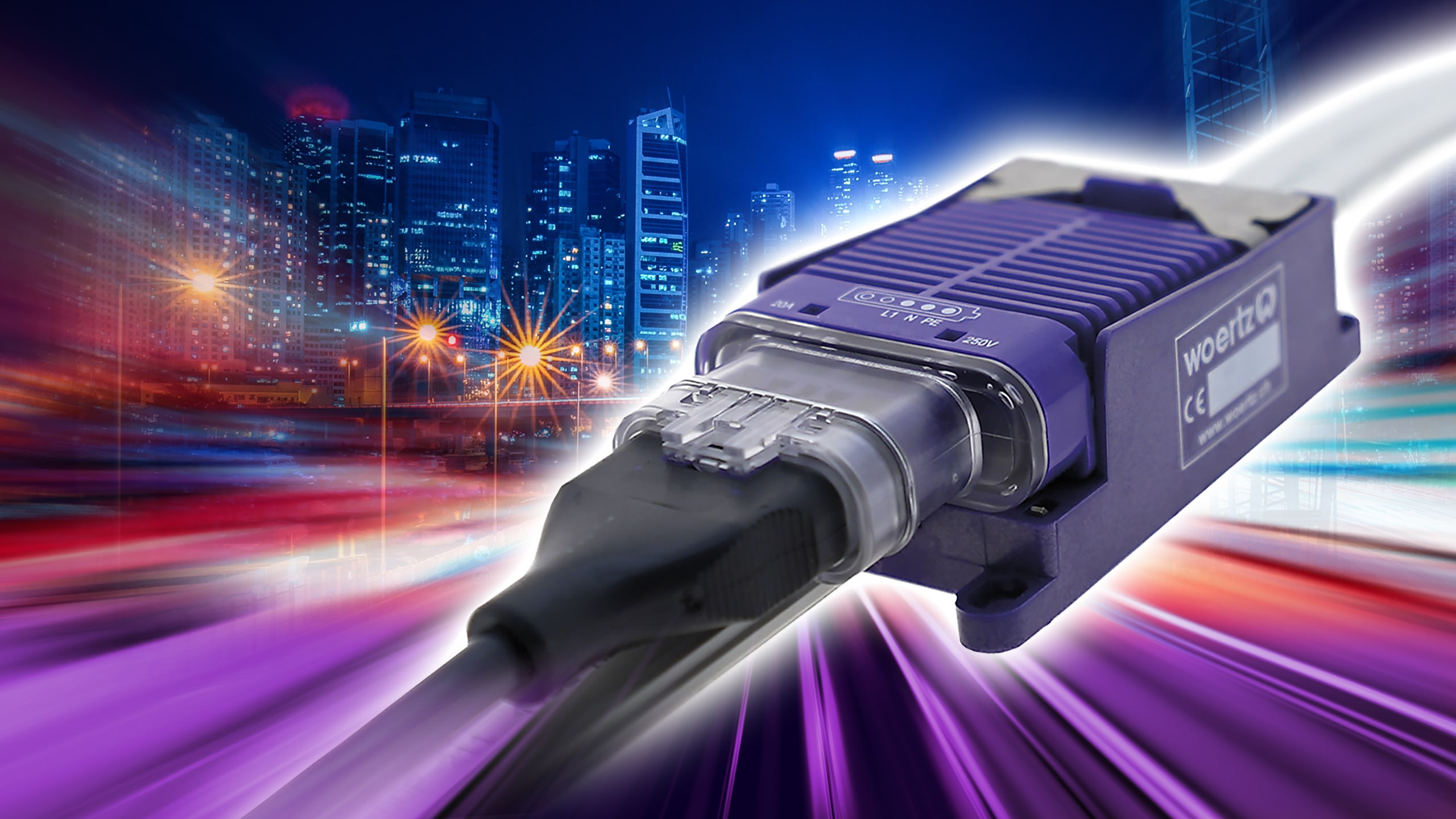

The new Woertz quick connection box - A revolution in electrical installation!

For quick installation with pluggable connection cable (IP40 or IP68) in 24 different variants for Woertz flat cable systems.

The installation of the junction box does not require any tools, takes less than a minute and cannot be incorrectly connected due to the cable geometry, so that it can be carried out without skilled personnel.

Never before has it been possible to wire entire houses so easily and quickly, and without errors.

Installation is unsurpassed in speed, simplicity and safety.

All Woertz cables and boxes are manufactured entirely in Switzerland and are internationally certified. 100% Swiss Made. 100% Swiss Quality.

EFFICIENT - COMFORTABLE - PRE-TESTED - SAFE

Pre-assembly is the future of electrical installation

Pre-assembly reduces the installation time, the assembly effort on site and, above all, the personnel deployment immensely, which makes it much easier to meet short project deadlines.

Woertz delivers complete flat cable harnesses with pre-assembled, labelled and tested feed and junction boxes to the construction site, which then only have to be plugged together by the installer according to plan. This eliminates the need for a lot of thinking on site and reduces the possibility of errors.

Particularly in large projects with repetitive rooms, electrical installation is drastically accelerated thanks to pre-assembly.

Efficiency and safety thanks to pre-assembly

All Woertz cables and boxes are manufactured entirely in Switzerland and are internationally certified. 100% Swiss Made. 100% Swiss Quality.

FAST - FLEXIBLE - COST-EFFECTIVE - RESOURCE-SAVING

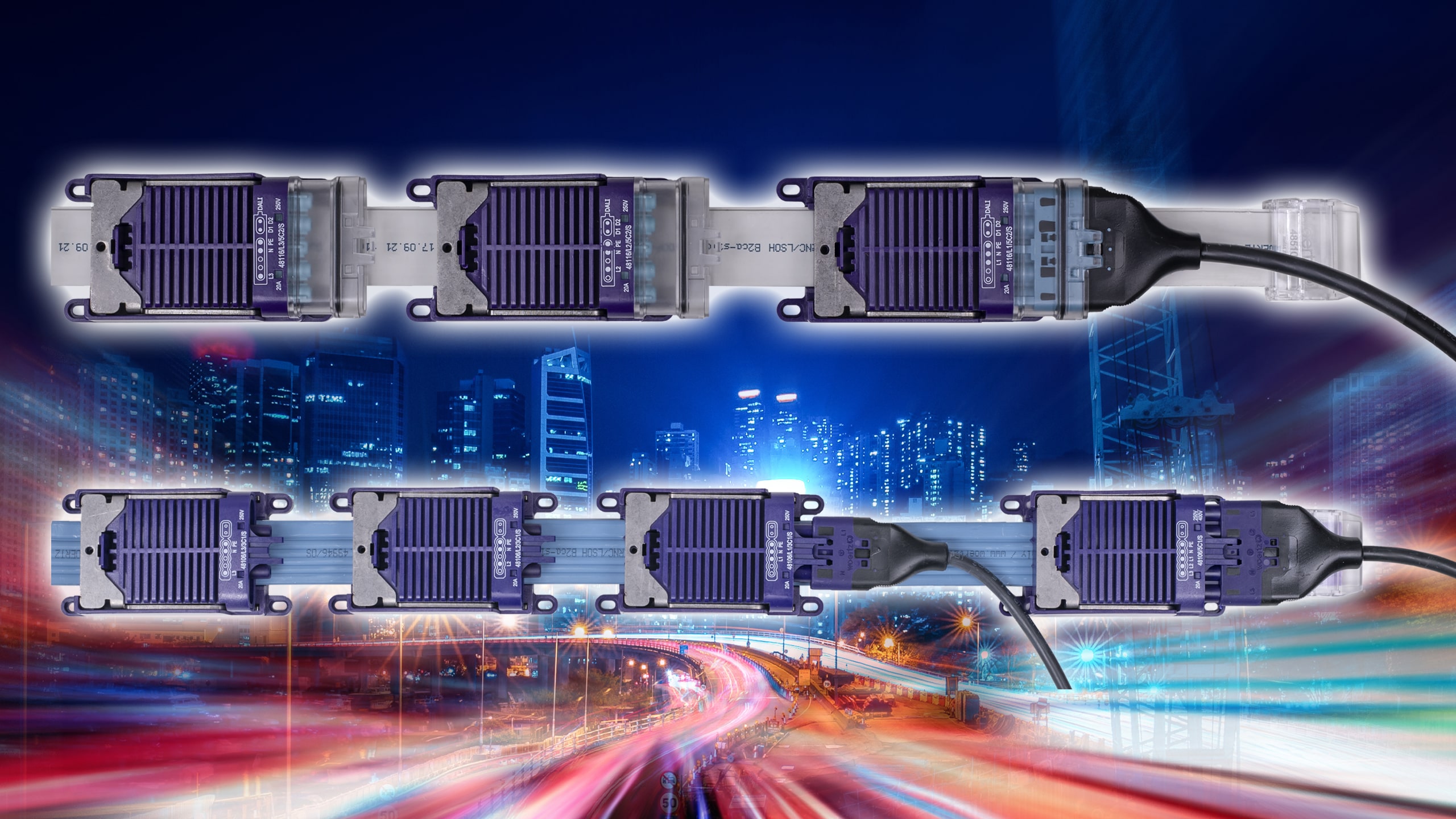

The Woertz DALI flat cable system is the most reasonable cabling solution for DALI control.

The system consists of flat cable, quick-connect boxes and plug-in system for power supply and control of up to 64 DALI luminaires indoors, as well as outdoors thanks to the high protection rating IP66/68. The flat cable combines power and Dali bus line in one single cable.

This decentralised installation not only saves considerable amounts of cable, but also time during installation and simplifies planning immensely. In addition, a lot of energy is saved during the entire service life. Further time and cost optimisation during installation can be achieved by pre-assembling ready-made flat cable harnesses with pre-assembled and tested junction boxes.

Frequent applications are found in-house in schools, hotels, museums, commercial, office and public buildings. Or outdoor at railway stations, airports, railway tunnels and road tunnels, as well as access-, rescue- and escape tunnels.

All Woertz cables and boxes are manufactured entirely in Switzerland and are internationally certified. 100% Swiss Made. 100% Swiss Quality.
