Current sensors for power hybrid applications

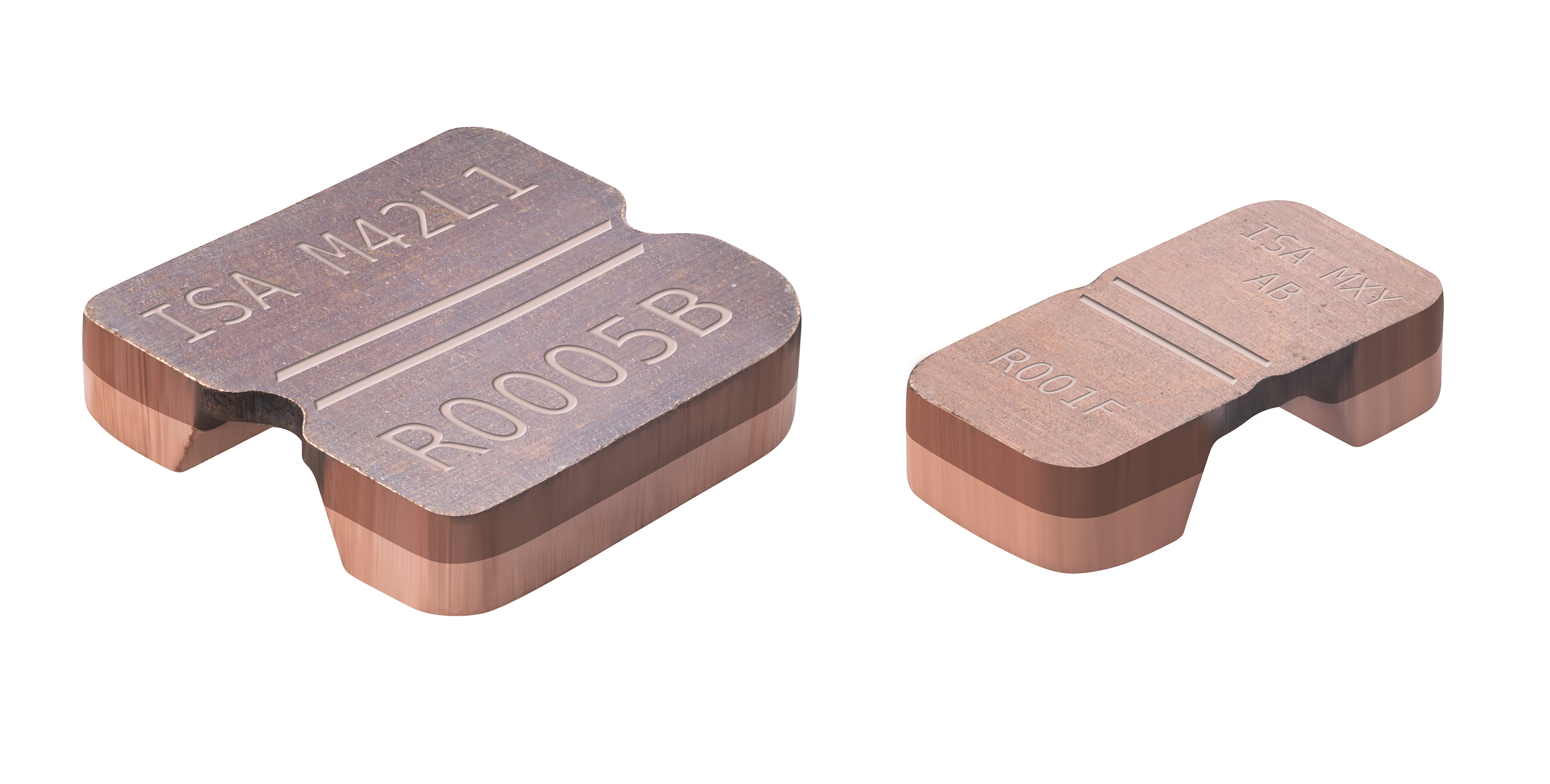

WAK - size 1206 // WAF - size 1213 // WAT - size 2512

The WAx series is characterized by very good long-term stability of < 0.5 % after 2,000 hours at a contact point temperature of 110 °C. This series has low resistance values even for small sizes. The products achieve excellent technical properties at high operating temperatures. The WAx series has a high power rating and operates in the low resistance range of 0.3 - 1 mOhm. Both products are available with a tolerance of 1 % or 5 %. %.

Product features:

• Space saving power resistor
• Rated power P70 °C up to 7 W
• 2-wire resistor
• Constant current up to 55 A (1mOhm)
• High application temperature range -65 to +175 °C
• Max. Soldering temperature up to 350 °C / 30 sec
• AEC-Q200 qualified
• RoHS 2011/65/EU compliant

Applications:

• High current applications for the automotive market
• Frequency converters
• Power modules

Current sensors for high current applications for the automotive market

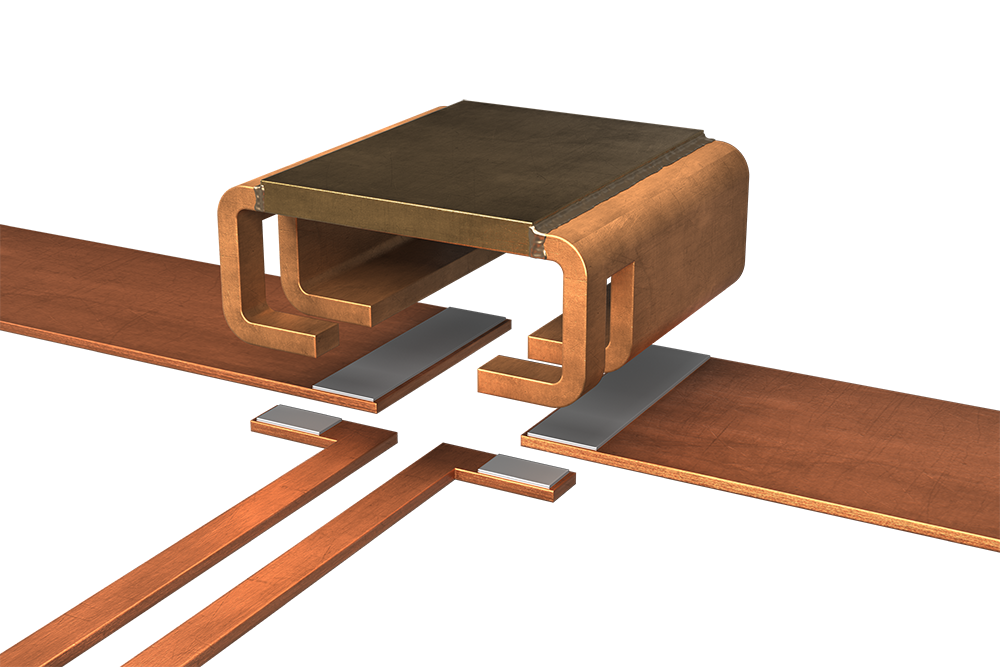

BVB - size 2725 // BVE - size 5930 // BVH - size 3820 // BVN - size 1216 // BVR - size 4026 // BVS - size 3920 // BVT - size 2512 // BVZ - size 4026

Isabellenhütte's BVx shunts have very good temperature coefficient and excellent long-term stability due to the use of Isabellenhütte's own alloys. The products are in the low resistance range from 0.1 to 6.8 mOhm. They are available in a tolerance of 1% or 5%.

Product features*:

• Continuous current rating up to 315 A (0.1 mOhm).
• Available as 2-wire or 4-wire resistor
• AEC-Q200 qualified
• RoHS 2011/65/EU compliant

*Product specific deviations possible

Applications:

• High current automotive applications
• Frequency converters
• Power modules
• For welding on busbars

Current sensors for power hybrid applications

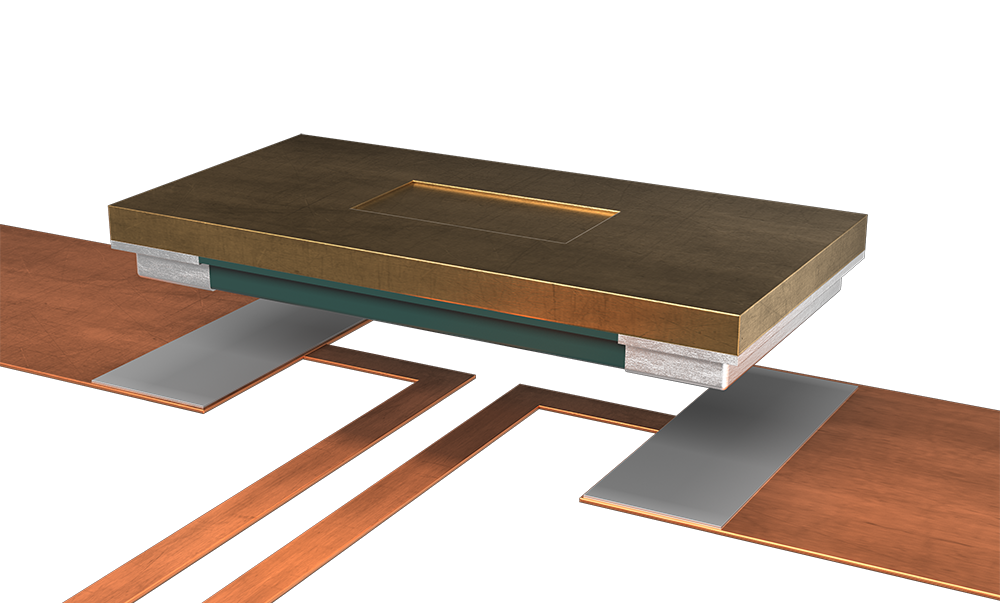

FMK - Size 1206 // FMP - Size 2010 // FMS - Size 2512

The FMx series of ISA-PLAN® technology has a robust construction with high quality solid resistance material. The products have a high power rating and operate in the low resistance range of 1.5 to 6 mOhm. They are available in a tolerance of 1% or 5%.

Produktmerkmale:

• 2-wire resistor
• High quality, solid resistor material
• Excellent long-term stability
• Low temperature coefficient and very low thermoelectric voltages
• Assembly: Reflow and IR-soldering
• AEC-Q200 qualification
• RoHS 2011/65/EU compliant

Applications:

• Control systems for the automotive market
• Power modules
• Frequency converters
• Switching power supplies
