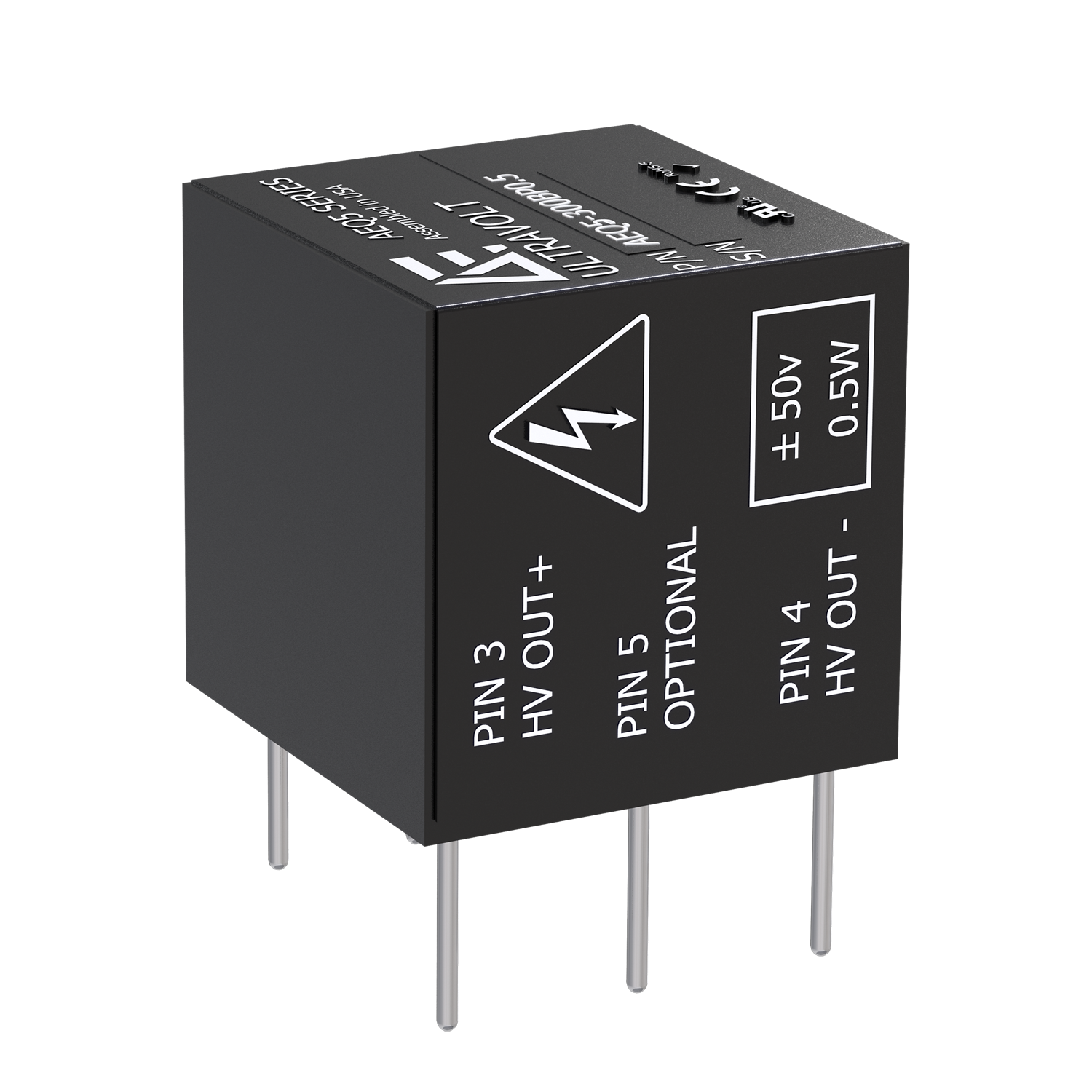

The UltraVolt© AEQ series of ultra-miniature UL approved isolated single or dual output DC to DC converters supply up to 600 VDC at 0.5 or 1.25 Watts of output power from an input voltage of +5 or +12 VDC. The small size of the units and ease of control make the AEQ series optimal for hand-held devices, portable equipment, and other small high-voltage projects.

• Ultra-miniature size (0.5” cube)
• High Voltage output of 0VDC to +/-300VDC (dual polarity units with center tap), 0VDC to 600VDC (floating/reversible units)
• +5 or +12 VDC input
• Output fully adjustable over 0VDC to maximum rating
• +/-1500VDC @ 0.5 W, ±1750 VDC @ 1.25 W input to output isolation
• Output short-circuit protection
• Ease of installation with PCB mount

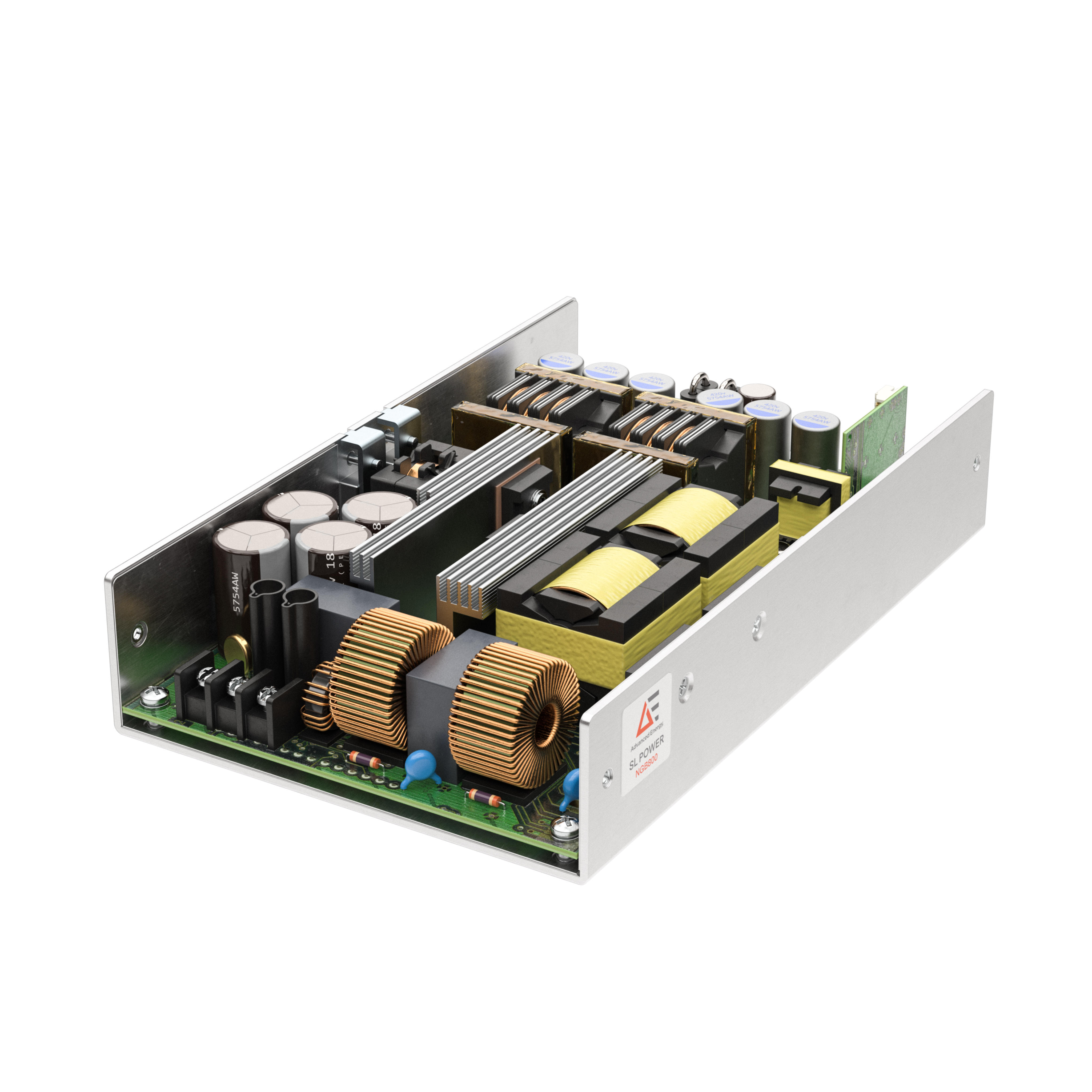

The NGB1200 offers a 1200W 3" x 10.5" u-channel power conversion solution. Featuring category-leading power density, state of the art thermal management, and Class B EMI.

• Output Power of 1200W
• 3”Wx 10.5”L x 1.6”H Size
• Universal 85-264Vac Input Range
• Meets Class B Emissions Levels
• 10+ Years Electrolytic Capacitor Life
• -20ºC to 70ºC Operating Temperature Range
• Meets IEC/UL/EN60601-1-1, 3rd Edition
• IEC/UL/EN62368-1 Approved
• Meets 4th Edition/Heavy Industrial EMC
• Less than 100uA Leakage Current
• Class I and Class II Input versions available
• 3 Years Warranty

The NGB800 offers an 800W - 5" x 8" power conversion solution with Class I and Class II inputs. A competitive and reliable power conversion solution for mission-critical applications.

• Output Power of 800W with airflow
• UL/CSA/IEC/IEC60601-1, IEC62368-1 Approved
• 650W Convection Cooled
• -20ºC to 80ºC Operating Temperature Range
• 5” X 8” X 1.6” Size
• Meets 4th Edition/Heavy Industrial EMC
• Less than 100uA Leakage Current
• Universal 85-264Vac Input Range
• Class I and Class I I Input versions available
• Meets Class B Emissions Levels
• 7+ Years Electrolytic Capacitor Life
• 3 Years Warranty
