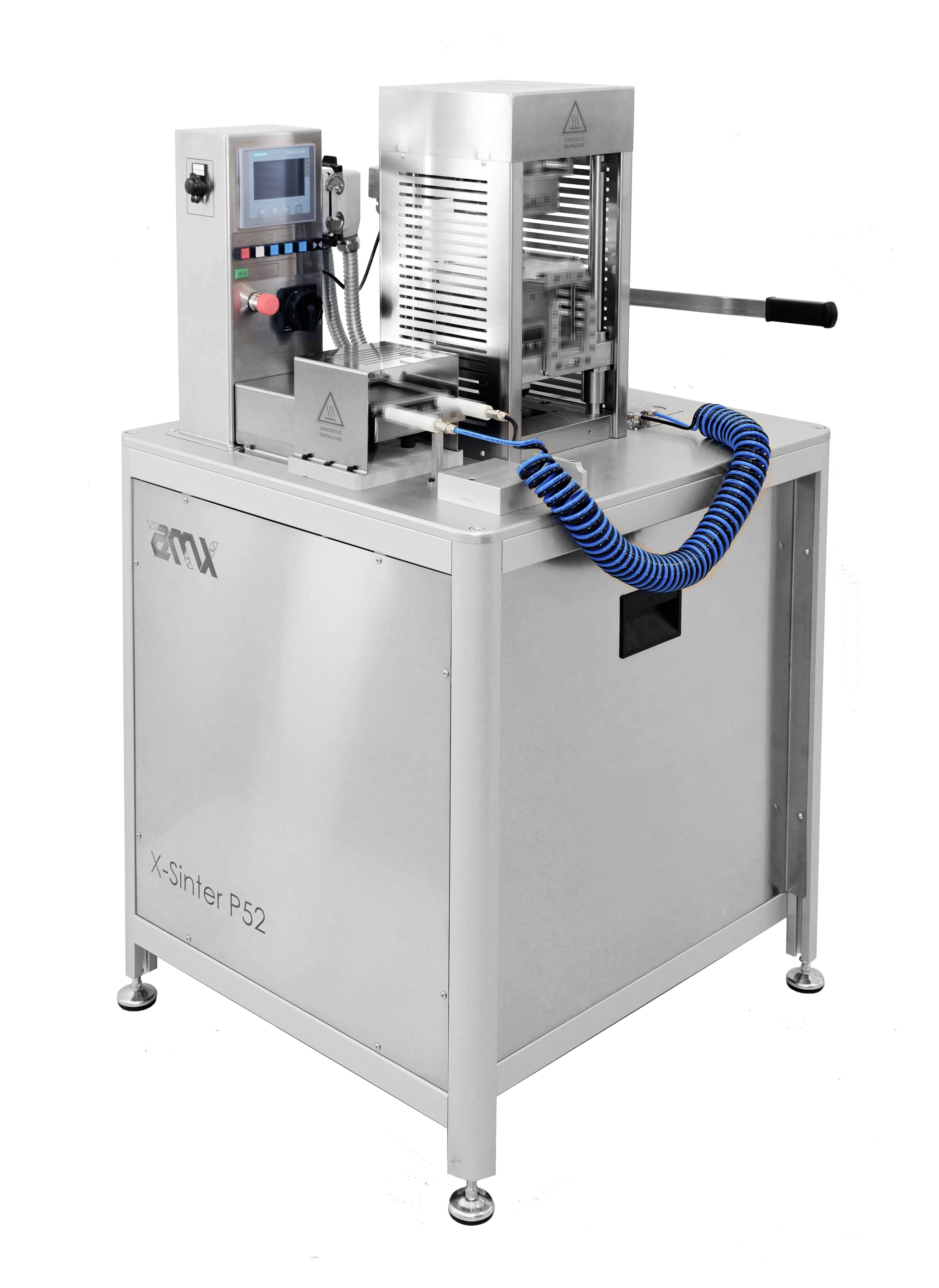

R&D, MANUAL SOLUTIONS
P51 - P52 - P53
X Sinter P50 Series is a complete
range of manual sintering presses
suitable for R&D, prototyping and
quality inspections.
Designed for Lab and clean room
environment, it is the perfect solution
for the first approach to the silver or
copper sintering process.
X Sinter P50 Series is a completely
manual press available in different
configurations and able to reach
the same sintering pressure and
temperature of the inline one.
Key advantages are: high accuracy
and reliability.
It is really flexible and has lot of
possible options in order to adapt to
the specific customer’s needs.

R&D, SEMI AUTO SOLUTIONS
P54 - P55
A larger tool allows to pressure
sinter dies on single substrate, as
entire mastercard or frame. It is
possible to modulate the clamping
stroke to pressure sinter thicker
components like already molded
packages on pin-thin heatsink.
P54 and P55 have a wide range of
forces and are able to provide best
accuracy both with low and high
force. Thanks to the wafer level tool
it is also possible to process entire
wafers up to 12’’ø.
Temperature and pressure profile
curves can be easily exported by FTP
server or USB.

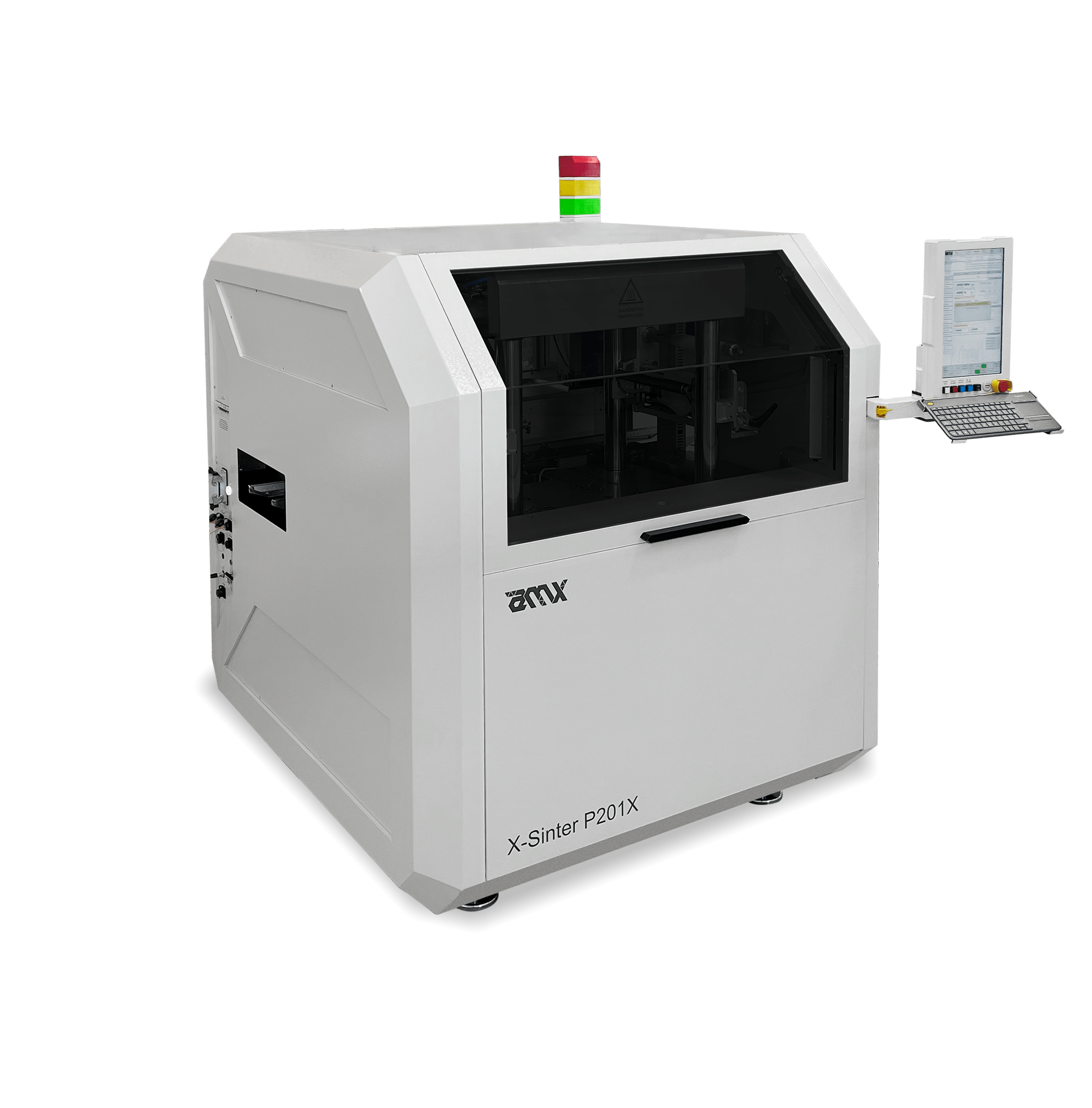

FULL INLINE SOLUTION
P200X Series is a worldwide
patented concept for sintering press
which greatly reduces maintenance
and production stops.
Based on AMX In-Line modular
station, it guarantees flexibility ,
perfect repeatibility, high accuracy
and high production rate.
One of the most appreciated features
is our easy removable pressing tool
to handle production variation and
avoid long downtimes.
IoT-ready hardware and advanced
software with intuitive interface and
complete traceability.

PATENTED MICRO-PUNCH
SYSTEM
AMX micro-punch system
enables to press each die
independently, guaranteeing
uniform pressure and
managing different dies
heights and substrate
configurations.
Recommended choice for
advance package sintering,
Si, SiC, Clips, Sensors.

SEMI AUTOMATIC
SOLUTION
P100 Series is a worldwide patented
concept for sintering press which
greatly reduces maintenance and
production stops.
Based on AMX modular station,
it guarantees flexibility , perfect
repeatibility, high accuracy, for
prototyping and also medium
production batches.
Easy removable pressing tool to
handle production variation and
avoid long downtimes. IoT-ready
hardware and advanced software
with intuitive interface and complete
traceability.

PATENTED MICRO-PUNCH
SYSTEM
AMX micro-punch system
enables to press each die
independently, guaranteeing
uniform pressure and
managing different dies
heights and substrate
configurations.
Recommended choice for
advance package sintering,
Si, SiC, Clips, Sensors
