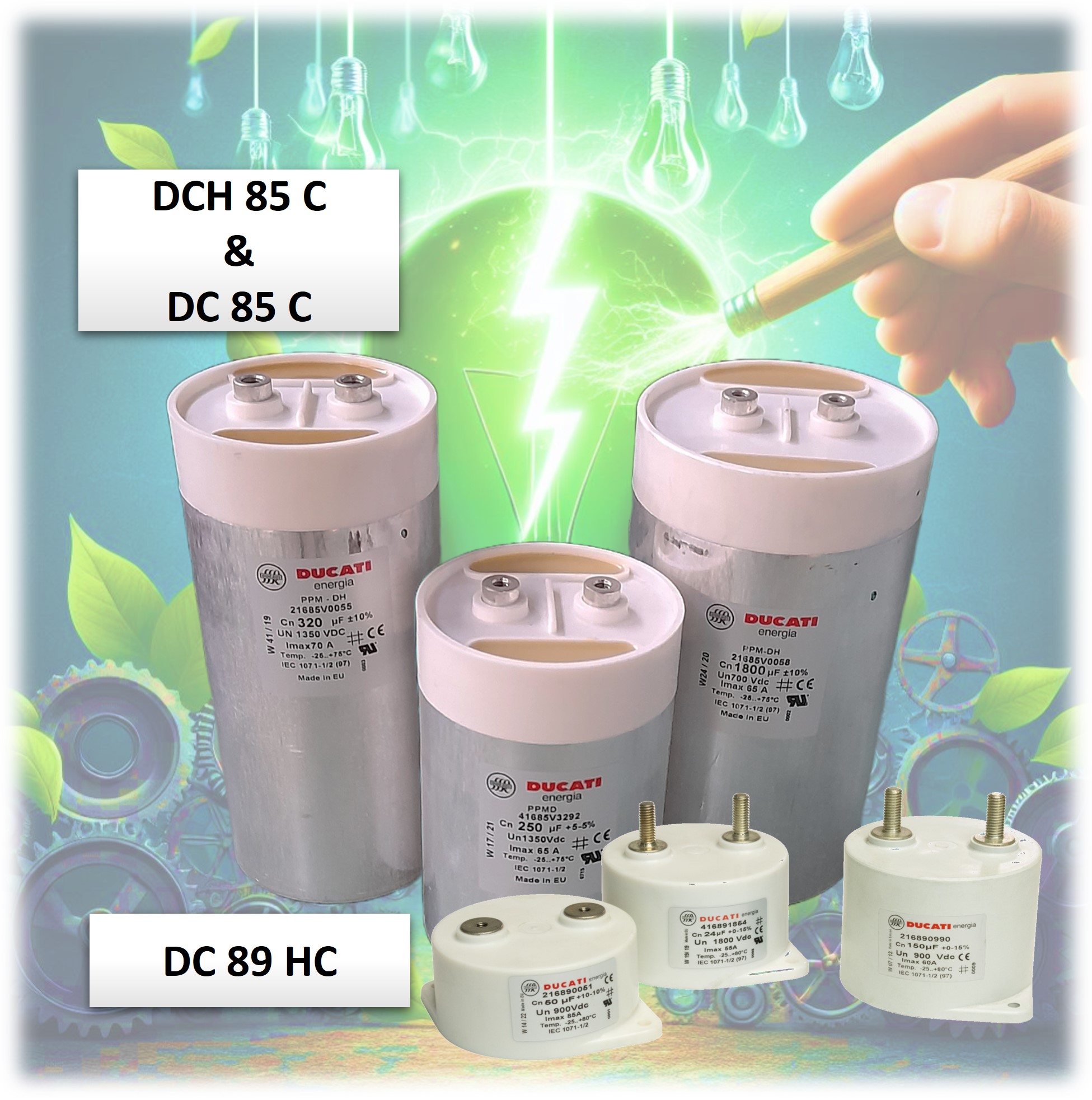

DCH85 C series:

Thanks to the exclusive Ducati Energia High Crystallinity Film DCH 85 C DClink Capacitors provide leading Capacity Density without any de-rating or limitation, respective to standard makes. The very high capacity density allows substantial cost reductions due to the
reduction of capacitor size and/or number, as well as particularly low inductance values.
The exclusive Ducati Energia metallization profiles guarantee high capacity stability and a controlled, open-circuit condition at the end of DCH 85 C operational life, while maximizing the current capability.

DC 85 C series:

Powered by the tried and proven Ducati Energia PPMh technology DC 85 C is a competitive and reliable solution to all common DC-Link applications. When coupled with the exclusive Ducati Energia High Crystallinity Film the DC 85 C construction provides superior temperature performance with 100khrs life @ 90°C HotSpot or extended life of 400khrs @70°C HotSpot. The exclusive Ducati Energia metallization profiles guarantee high capacity stability and a controlled, open-circuit condition at the end of DC 85 C operational life, while maximizing the current capability.

DC 89 HC series:

The special design of DC 89 HC provides very high RMS current capability and very low series inductance in a compact package. The exclusive metal bottom reduces thermal resistance for optimal heat-sink mounting. The exclusive Ducati Energia metallization profiles guarantee high capacity stability and a controlled, open-circuit condition at the end of DC 89 HC operational life, while maximizing the current capability. A special internal construction allows the minimization of field effects, thus guaranteeing real-life low ESL.

High Frequncy Application: Ducati Energia has developed the technology to customize its capacitors to be installed in the new wide band gap SIC and GAN power converters.

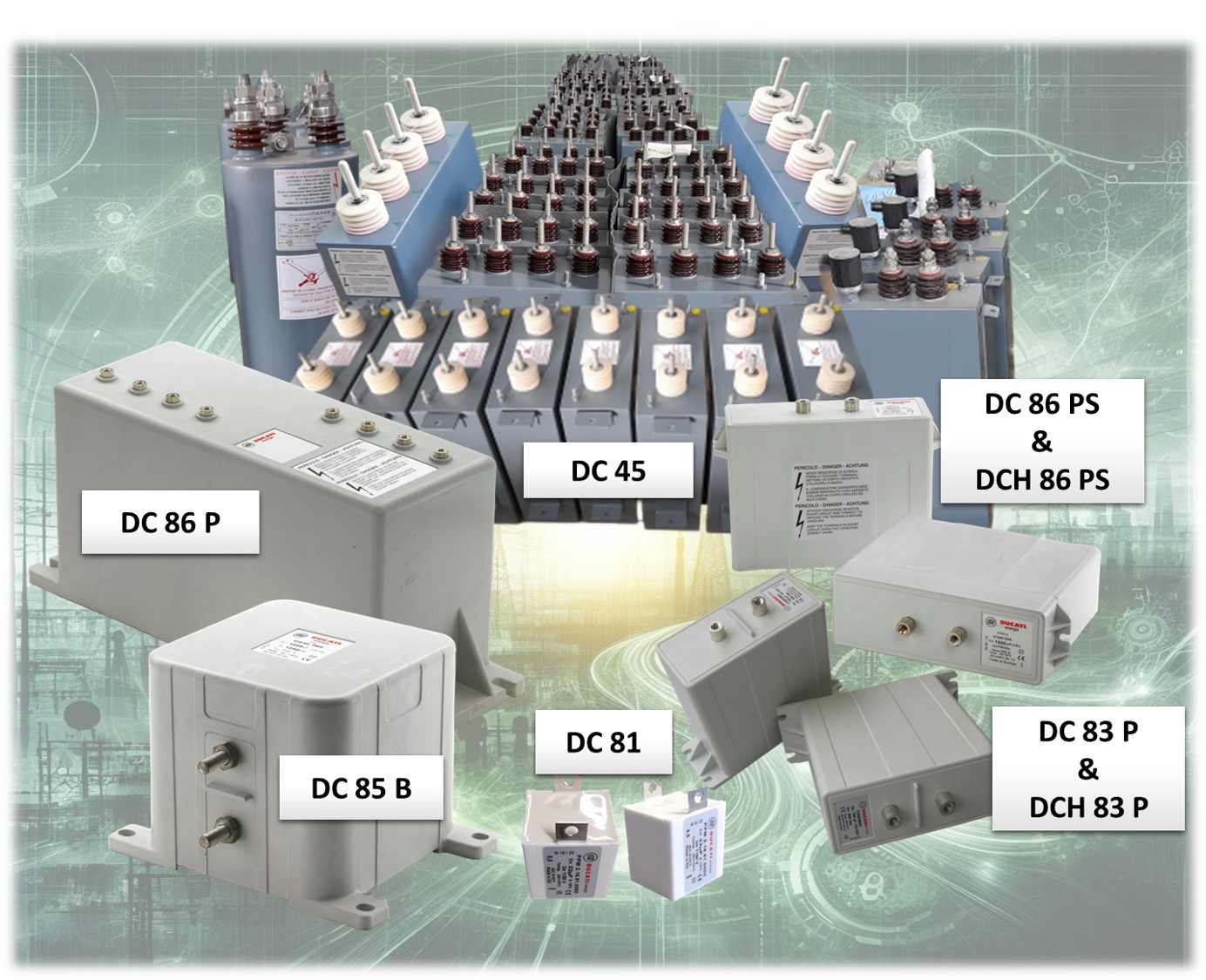

DCH 86 PS series

Thanks to the exclusive Ducati Energia High Crystallinity Film DCH 86 PS Prismatic DC-link Capacitors provide leading Capacity Density without any de-rating or limitation, respective to standard makes. The very high capacity density allows substantial cost reductions due to the
reduction of capacitor size and/or number, as well as particularly low inductance values. The exclusive Ducati Energia metallization profiles guarantee high capacity stability and a controlled, open-circuit condition at the end of DCH 86 PS operational life, while maximizing the current capability. A special internal construction allows the minimization of field effects, thus guaranteeing real-life low ESL.

DC 86 PS series

This Prismatic Box variant is powered by the tried and proven Ducati Energia PPMh technology making it a competitive and reliable solution to all common DC-Link applications. When coupled with the exclusive Ducati Energia High Crystallinity Film the DC 86 PS construction provides superior temperature performance with 100khrs life @ 90°C HotSpot or extended life of 400khrs @70°C HotSpot. The exclusive Ducati Energia metallization profiles guarantee high capacity stability and a controlled, open-circuit condition at the end of DC 86 PS operational life, while maximizing the current capability. A special internal construction allows the minimization of field effects, thus guaranteeing real-life low ESL

DC 86 P series

This very large Prismatic Box variant is particularly convenient for applications requiring very large capacity or high operating voltages; the tried and proven Ducati Energia PPMh technology provides competitive and reliable performances for all common DC-Link applications. When coupled with the exclusive Ducati Energia High Crystallinity Film the DC 86 P construction provides superior temperature performance with 100khrs life @ 90°C HotSpot or extended life of 400khrs @70°C HotSpot. The exclusive Ducati Energia metallization profiles guarantee high capacity stability and a controlled, open-circuit condition at the end of DC 86 P operational life, while maximizing the current capability.

DC 85 B series

This Cubic Box variant is powered by the tried and proven Ducati Energia PPMh technology making it a competitive and reliable solution to all common DC-Link applications. When coupled with the exclusive Ducati Energia High Crystallinity Film the DC 85 B construction provides superior temperature performance with 100khrs life @ 90°C HotSpot or extended life of 400khrs @70°C HotSpot. The exclusive Ducati Energia metallization profiles guarantee high capacity stability and a controlled, open-circuit condition at the end of DC 85 B operational life, while maximizing the current capability.

DC 83 P and DCH 83 P series

This Prismatic Box variant is powered by the tried and proven Ducati Energia technology making it a competitive and reliable solution to all common DC-Link applications. The very high capacity density allows substantial cost reductions due to the reduction of capacitor size and/or number, as well as particularly low inductance values The exclusive Ducati Energia metallization profiles guarantee high capacity stability and a controlled, open-circuit condition at the end of DC 83 P and DCH 83 P series operational life, while maximizing the current capability. A special internal construction allows the minimization of field effects, thus guaranteeing real-life low ESL

DC 45 Series

Designed for High-Voltage - High-Capacity applications, DC 45 can be made either with steel, stainless steel or aluminum cases and are vacuum impregnated with silicon oil. The exclusive Ducati Energia metallization profiles guarantee high capacity stability and a controlled, open-circuit condition at the end of DC 45 operational life, while maximizing the current capability. A special internal construction allows the minimization of field effects, thus guaranteeing real-life low ESL.

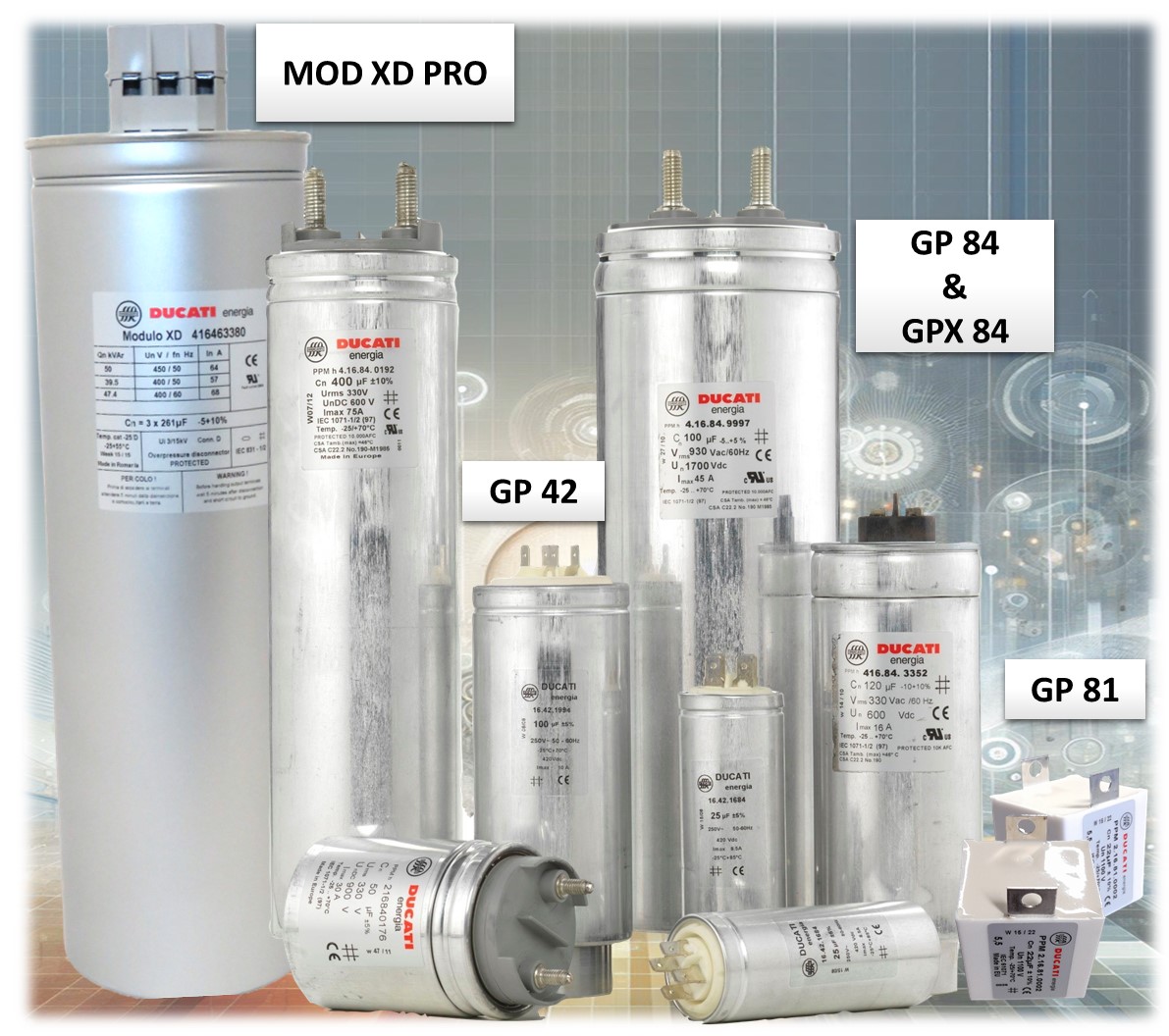

GP84 single-phase, cylindrical AC & DC Capacitors are the ideal solution for most AC Filter requirements as well as special PFC projects. The sturdy construction with Aluminum case and plastic lid, the wide range of available connections and the safety features based on the integrated UL-approved overpressure disconnector and DRY resin impregnation ensure GP84 can be easily and reliably integrated into any application and environmental condition.

GPX 84 single-phase, cylindrical AC & DC Capacitors are the ideal solution for High Performance applications requiring very high current capability, higher operating temperatures and a lifecycle characterised by very stable capacity values. In addition to the sturdy construction with Aluminum case and plastic lid, the wide range of available connections and the safety features based on the integrated UL-approved overpressure disconnector and DRY resin impregnation, GPX 84 includes a fortified internal construction based on busbar
connections and a special metallised film design resulting in superior current, temperature and capacity stability parameters.

MODULO XD PRO, Modulo XD PRO three phase capacitors are a reliable solution for AC filtering and for high performance PFC applications.UL approved overpressure safety mechanism provide highest safety against critical failures in case of overload or at the end of operating life.The internal construction is based on ∆-connected windings especially designed to provide high RMS current capability over a very wide frequency range.

GP42, with its compact size and simple construction, is an efficient solution for AC Filtering applications requiring relatively low capacities and currents.

- GP81, These Capacitors are the ideal solution as AC filter for power electronic applications requiring high current capability and small size designed for mounting on print circuit board. It provides to customers a modular solution on which to develop and scale their projects. In addition, the construction with internal wound element made with special metallized film, very low internal self-inductance and potted with resin in self-extinguish plastic case give a superior capacitor type with very high stability and reliability performance.
