Driver Solution for Traction 1FSS0560

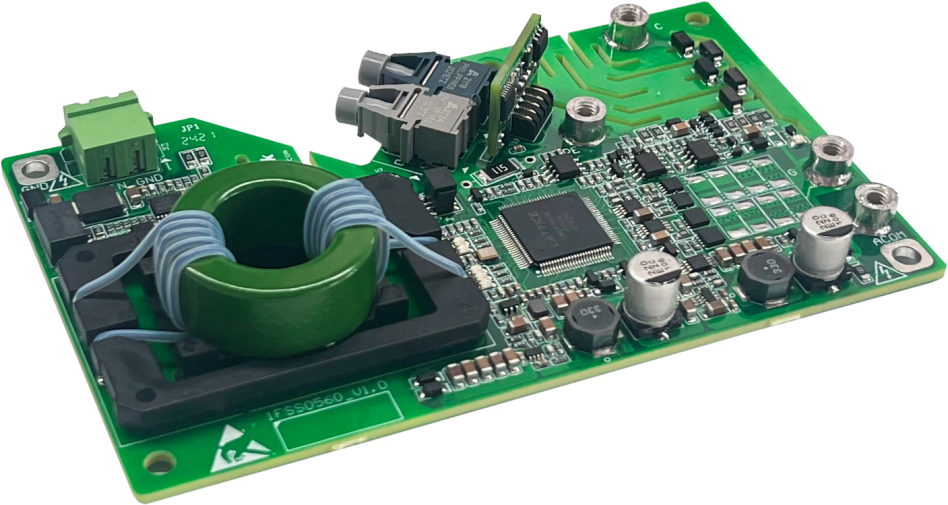

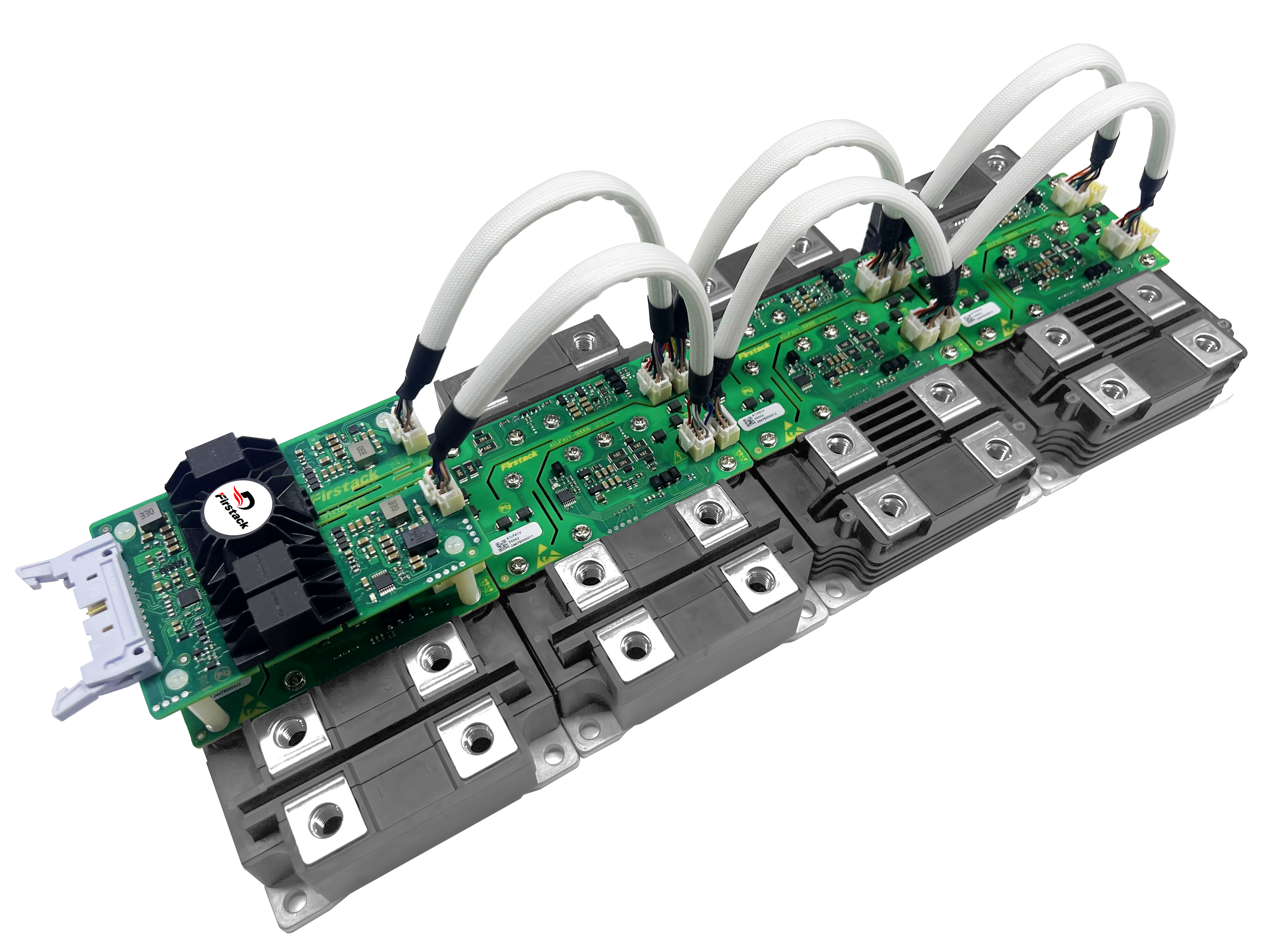

The 2FHC06M33XX is a high-performance, dual-channel SiC/IGBT gate driver core based on Firstack intelligent chip technology, supports SiC/IGBT modules up to 3300V. It is composed of a MCC (main control core) and multiple MAB (module adaptor board) units. The MCC and MAB are connected by a set of cables, which can flexibly match 1 to 4 SiC/IGBT modules and has excellent current sharing effect. In addition, the 2FHC06M33XX features distributed NTC sampling, the temperature information of each paralleled module can be accurately read and transmitted to the customer through isolation, which greatly reduces the customer development cycle. It is suitable for Infineon XHP_2, Mitsubishi LV100, Hitachi Linpak and other packaging multi-parallel, and mainly used in rail, PV, wind, industrial drives and other high-reliability fields.

• Jitter time < 3ns
• 3300V X4
• VGS adjustable
• Isolated NTC sensing

• VDC : 20~6000V，Id/Ic =5~8000A
• LS＜10nH
• Temp：-45-200℃

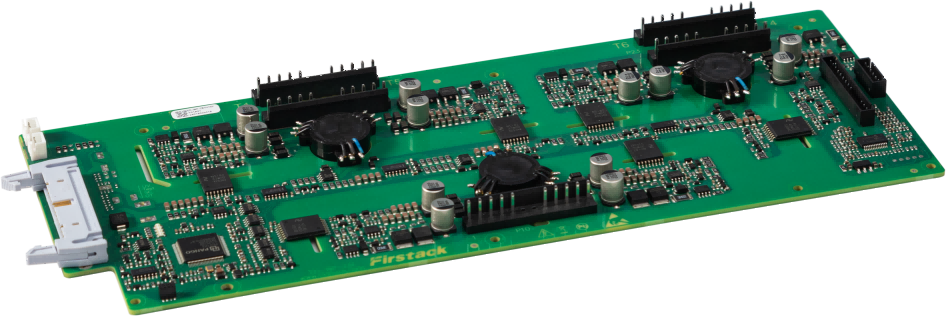

ED-WP-CB is a high-performance digital gate driver core developed by Firstack for NPC I-type /ANPC 3-level system. The gate driver adopts CPLD as the digitally controlled core, with complete protection functions and built-in fault management system, which uploads the converter's operating state to the master computer in real time, providing support for "big data management" for the failed converter site. Perfectly solving the two major problems of "turn-off timing sequence" and "large commutation circuit turn-off peak" in NPC I-type topology, the reliability of NPC topology can be comparable to 2-level, allowing customers to use NPC I-type /ANPC 3-level as same as 2-level.

Highlights:

-Multi-parallel of NPC/ANPC topology

-Rated voltage range:690-1250VAC

-Power range:1MW-10MW

Applications:

-PV inverter

-ESS

-Wind power converter

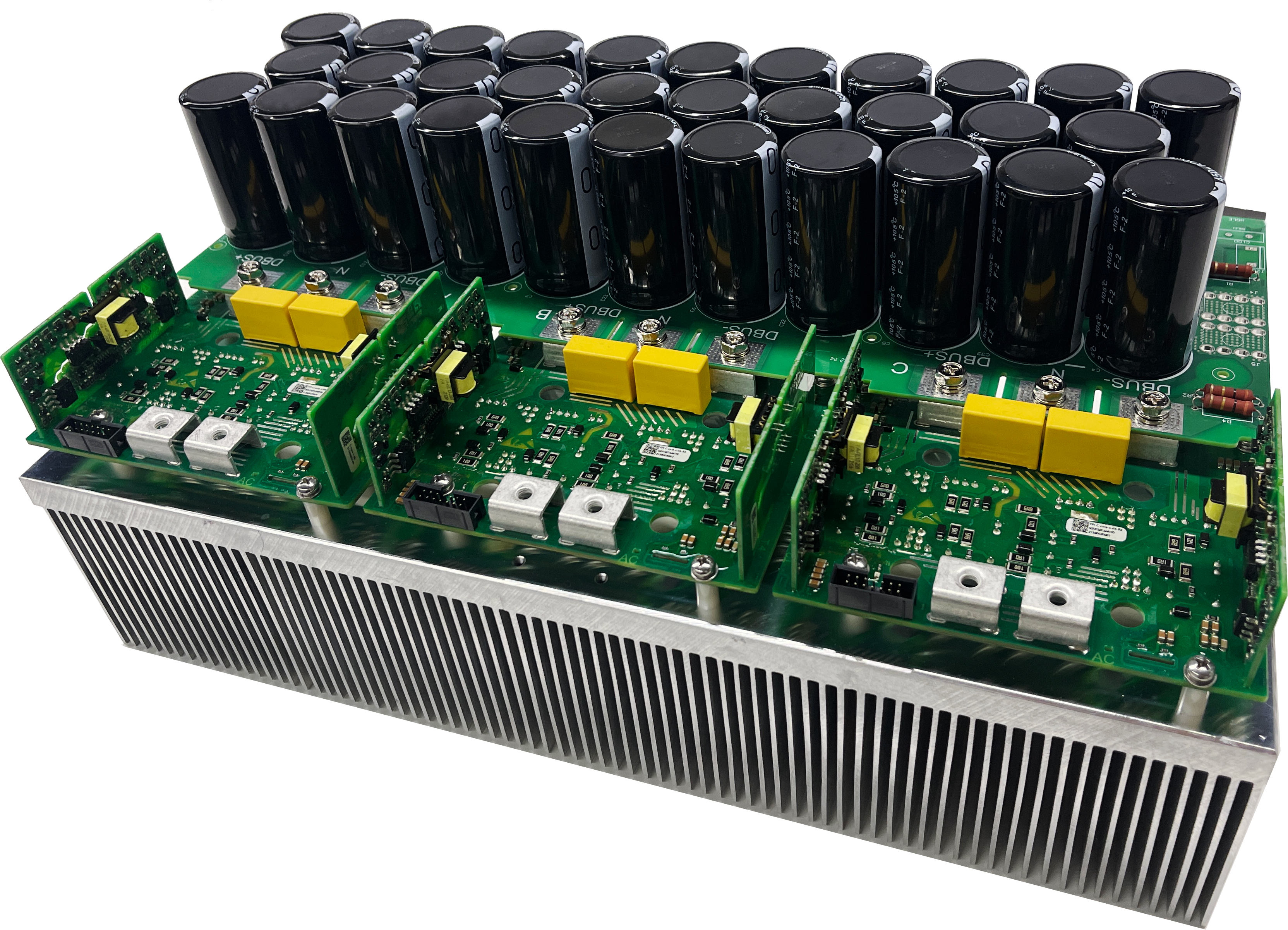

Based on over a decade of research in gate drivers and power modules, Firstack is able to offer customized power module solutions for our clients. We can design the overall mechanical structure of the module according to your specific requirements, including the connections for capacitors and busbars, as well as the heat sink and AC-side output terminals. Our core advantage lies in the seamless integration of power modules and gate drivers, saving you the step of troubleshooting and optimization. This provides a solid foundation to ensure the stable and efficient operation of the entire system.

The 2FHC06M33XX is a high-performance, dual-channel SiC/IGBT gate driver core based on Firstack intelligent chip technology, supports SiC/IGBT modules up to 3300V. It is composed of a MCC (main control core) and multiple MAB (module adaptor board) units. The MCC and MAB are connected by a set of cables, which can flexibly match 1 to 4 SiC/IGBT modules and has excellent current sharing effect. In addition, the 2FHC06M33XX features distributed NTC sampling, the temperature information of each paralleled module can be accurately read and transmitted to the customer through isolation, which greatly reduces the customer development cycle. It is suitable for Infineon XHP_2, Mitsubishi LV100, Hitachi Linpak and other packaging multi-parallel, and mainly used in rail, PV, wind, industrial drives and other high-reliability fields.

• Jitter time < 3ns
• 3300V X4
• VGS adjustable
• Isolated NTC sensing

• VDC : 20~6000V，Id/Ic =5~8000A
• LS＜10nH
• Temp：-45-200℃

ED-WP-CB is a high-performance digital gate driver core developed by Firstack for NPC I-type /ANPC 3-level system. The gate driver adopts CPLD as the digitally controlled core, with complete protection functions and built-in fault management system, which uploads the converter's operating state to the master computer in real time, providing support for "big data management" for the failed converter site. Perfectly solving the two major problems of "turn-off timing sequence" and "large commutation circuit turn-off peak" in NPC I-type topology, the reliability of NPC topology can be comparable to 2-level, allowing customers to use NPC I-type /ANPC 3-level as same as 2-level.

Highlights:

-Multi-parallel of NPC/ANPC topology

-Rated voltage range:690-1250VAC

-Power range:1MW-10MW

Applications:

-PV inverter

-ESS

-Wind power converter
