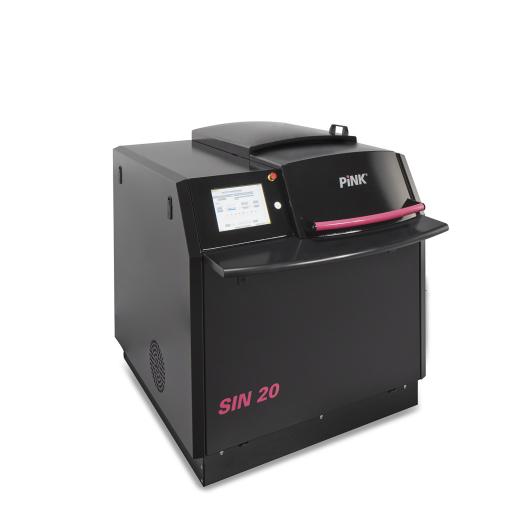

Small scale sintering system SIN 20

Sintering technology by PINK
For extraordinarily reliable, highly thermally conductive bonds
By the use of PINK sintering systems you can achieve sintering connections, which are characterized by reliable, resilient and highly temperature resistant bonds. The in situ reduction of the workpiece‘s surfaces before and after the sintering process allows the use of a wider variety of metals and facilitates following production steps.

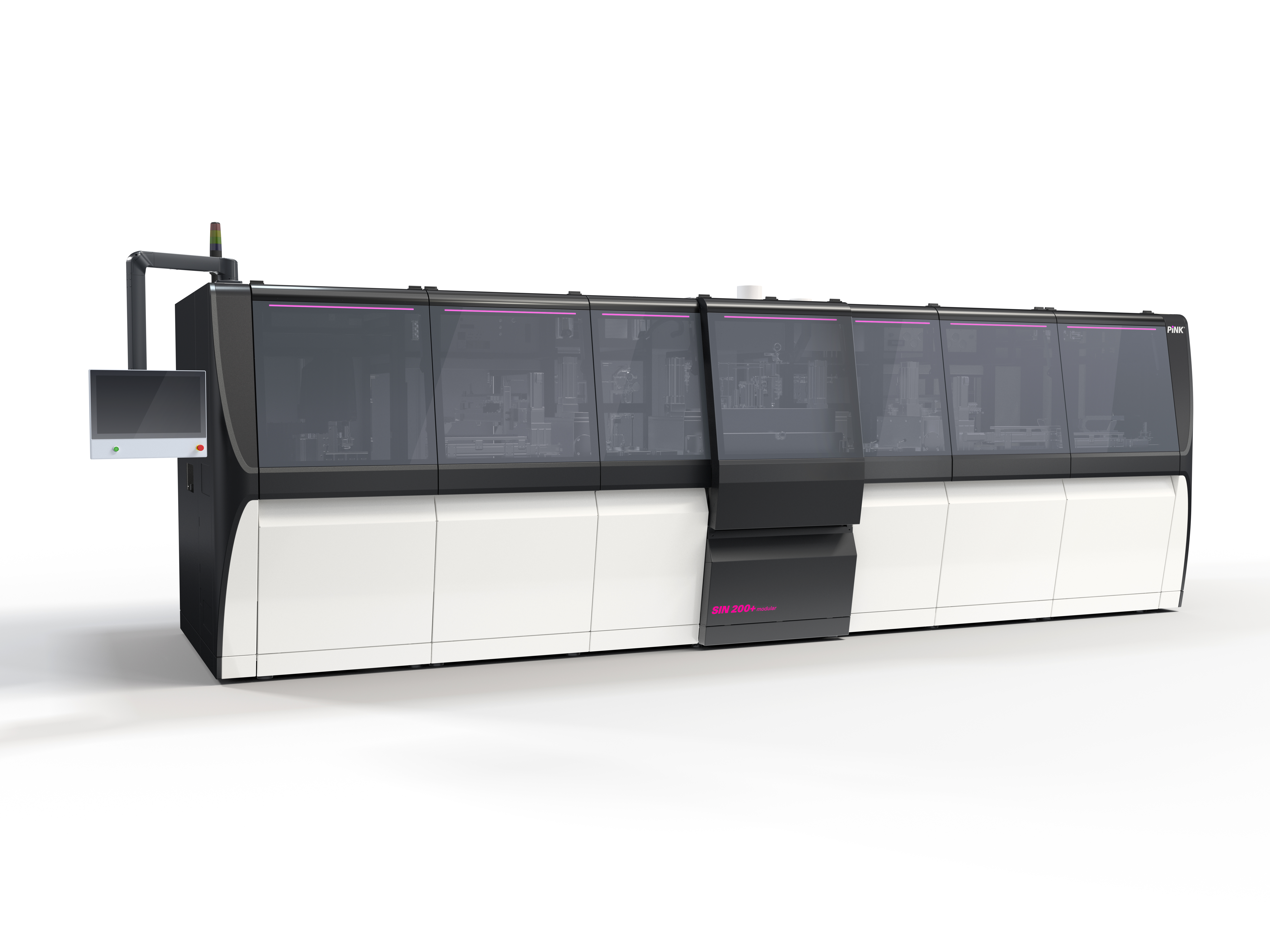

The patented sintering system SIN200+ modular is a highly flexible system, which is suitable for various production demands from laboratory up to series production, as the system is modular designed and can be operated as a batch system or an automated inline system with different preheating and/or cooling modules. The substrate temperature, the atmospheric pressure and gas composition during the entire heating, sintering and cooling procedure within the vacuum chamber/s is exactly controllable at any time. In combination with the dynamic adaptability of the pressing force the system provides a wide array of novel process and production possibilities.

• Modular design with flexible expandability
• Pressing force: up to 2,000 kN (200 t)
• Dynamic controlled and monitored pressure ramps
• Press tool exchangeable (e.g. for customer specific tool)
• Programmable, controlled and monitored temperature profiles
• Temperature range: up to 350 °C
• Integrated heating technology
• Hermetically sealed process chambers
• Atmospheric pressure range: 1-1.200 mbar
• Exact control of inherent gas atmosphere (N2, N2/O2, N2/H2, HCOOH)
• Process area: ≤ 280 mm diameter
• Manual or automatic loading and unloading
• Patented system
• Constant process control and traceability
• Easy operation by touch screen panel
• Integrated interface to MES
