3D POSITIONING SYSTEMS
Description

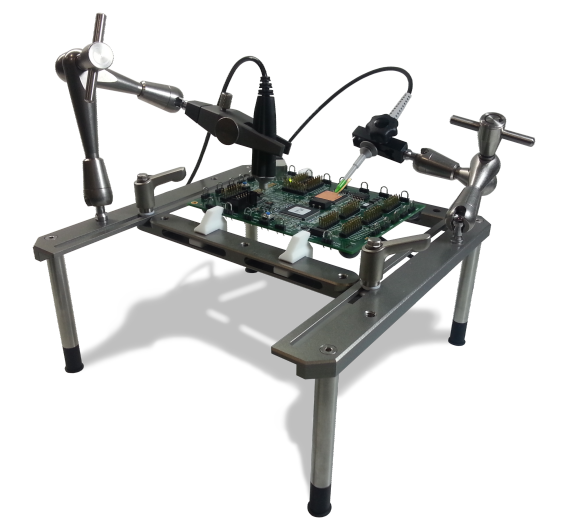

SKID® is a unique platform designed to satisfy all sorts of different demands on PCBA testing and debugging in one single item. It offers a modular design, wich enables the user to expand the SKID® according to his needs. The frame is available in three versions: SKID®S offers a clamping width of at least 160 x160 mm, wich fits the 3U standard PCB form factor, SKID®M for 6U cards
and SKID®L with a clamping width of 300x340mm. Of course smaller boards can be tested as well. The PCBA spacers can be positioned to clamp most geometrical forms;even inconvenient non-standard shapes, that are usually hard to clamp. The PCBA resides 10 mm above the frame, offering a better accessibility to the dut and the SKID® itself stands on 90 mm pedestals, enabling access from top- and bottom- side simultaneously. Standard M6 threads are all around the frame to mount equipment, such as probe positioners, lamps or other accessories. Depending on its configuration, SKID® can be used from 0 °C to +50 °C, or for environmental testing in climate chambers for temperatures from -55 °C to +155 °C, each with non-condensing humidity, depending on choosen model.
SKID® is available in three sizes. SKID®S for 3UPCB‘s, SKID®M for 6U PCB‘s and SKID®L for any PCBA‘s larger than the 6U standard. Since the frame consists only of a few parts, the setup of the SKID® is done in a breath. M6 threads all around the frame allow mounting of multiple accessories, such as test equipment, lighting and magnifiers or even cameras to record or stream video. e.g. thermal images. The low gravity center of the SKID® allows even comparable large and heavy devices to be mounted.
