Schmidbauer Transformatoren und Gerätebau GmbH

LCL Filter

Schmidbauer Transformatoren und Gerätebau GmbH

Supplier profile All products

Contact supplier

Description

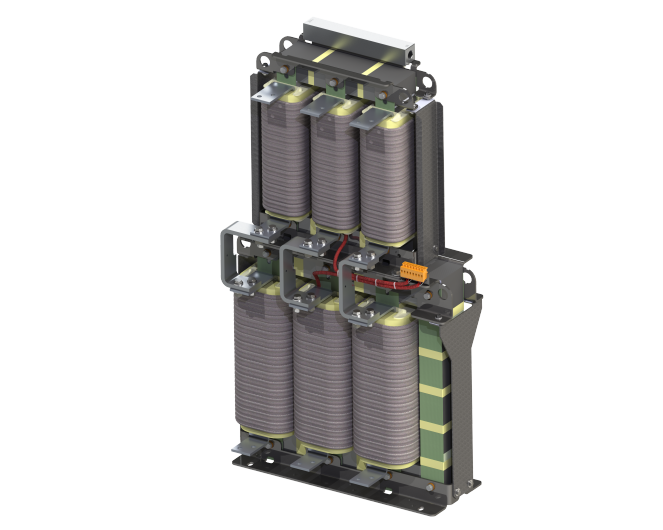

LCL filters are used to connect AIC (active infeed converter) and AFE (active front end) drives to the mains.

Due to the increasing use of AFE / AIC, more LCL filters are needed.

It can also be run as an LC filterThe LCL filters are also of interest for projects in the DC-AC product range, which feed electric energy from wind generators or PV inverters into the grid. Applications of regenerative AFE drives are lifts, cranes or similar transport systems, tools or other machines with many brake switching cycles and presses.

We develop, design, calculate and build filters according to your specifications, depending on the location.

More from us

Our website

More products by Schmidbauer Transformatoren und Gerätebau GmbH

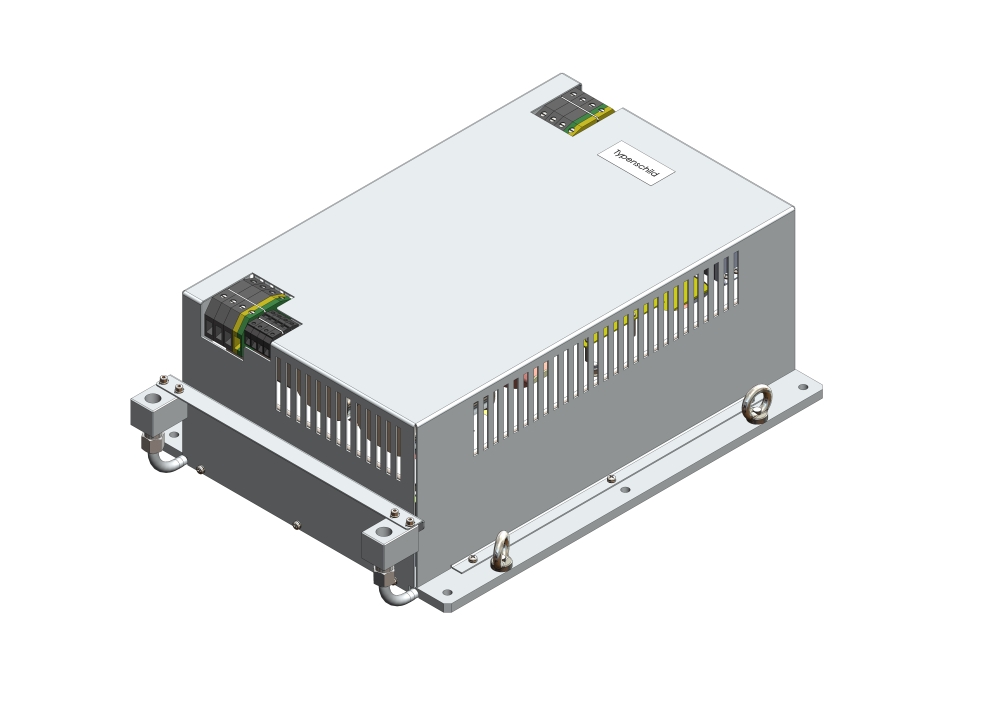

3 AC filter for feed in and regenerating recovery systems (active front)

Problems with temperature rise, the scale or with common mode share of the whole filter system?

Our solution:
3AC filter Green Core for feed in and regenerating recovery systems
(active front – AFE)
variable EMV-categories to EN61800-3

All-in-one-filter possible with X- und Y-capacitor
Filter concepts to meet the requirements of C1 or C2

Advantages at a glance

Longer working life of the motors and the spindle
Low-noise inductance due to specific design
Minimization of the voltage load on the motor winding
All-in-one-filter reduces the customers internal wiring effort

Technical data:

Rated current: up to 2500 A
Power range: 10 kW – 1500 kW
Cooling type: natural convection, forced cooling or liquid cooling

Optimized for you:

Customised filter solutions for higher requirements according to EN61800-3 part 3
Best support in the imporement of the components

UL-approval of regenerative 3-phase line filters on request.

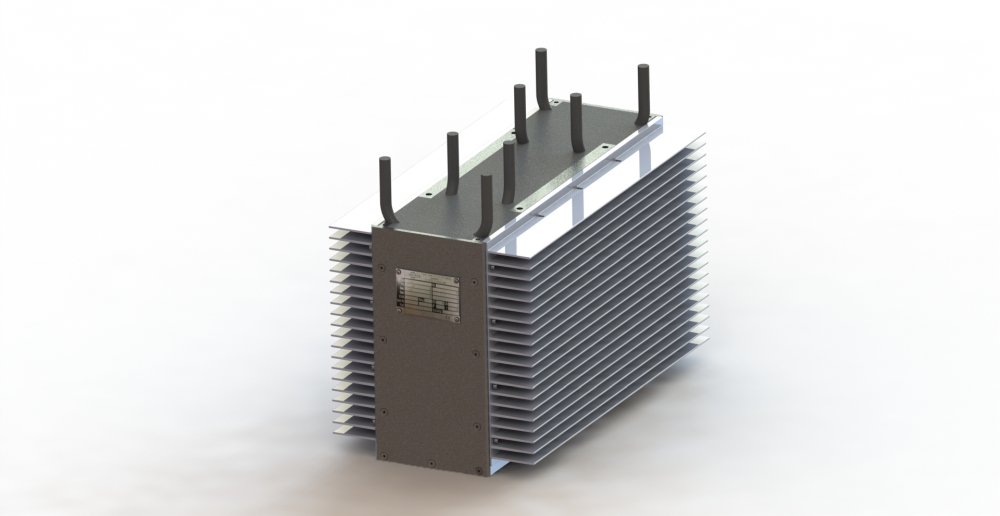

Medium frequency transformer / High frequency transformer

compact versions in the range of medium and high frequency at 1000 kVA to 50 kHz and 1 kVA to 200 kHz

Coordinated winding goods – air- & water-cooled – for power electronics, manufactured with a resource-saving designAdvantages of the medium frequency transformers:

high-efficiency medium-frequency and high-frequency winding goods
execution in polyurethan – potting up to insulating material class F (without PU-Verguss to insulating material class H)
compact design
power range from 1 kVA
degree of protection up to IP 68 possible
Voltage up to 1500 V

1 / 2
